Frequent motor failure can increase repair costs, interrupt product sales, and create after-sales pressure for table fan suppliers. Table Fan Motor is intended for desktop fans used in homes, offices, shops, and other indoor spaces. Its long-lasting performance supports extended daily operation and lowers the need for repeated replacement under normal working conditions. This makes it a practical choice for manufacturers assembling table fans and distributors stocking motors for maintenance and replacement markets.

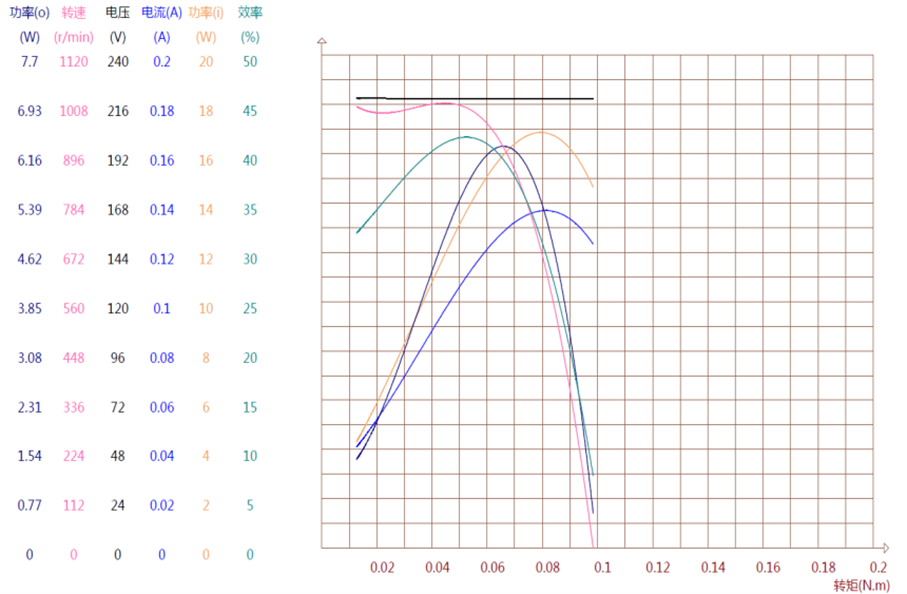

58A Performance curves

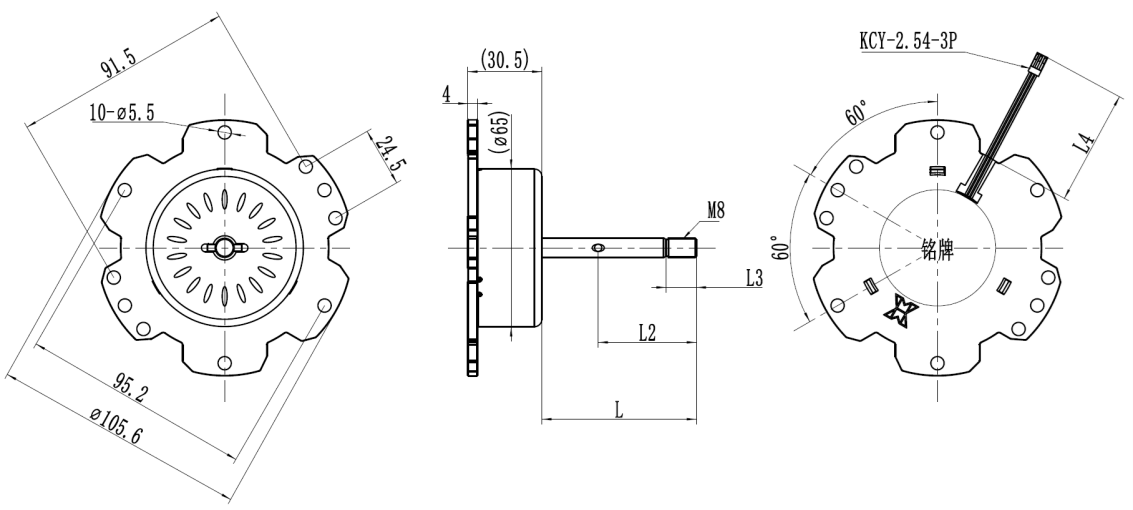

58A External dimensions
| Model No. | BE5810A001 | |
| Voltage | 24V | |
| Wire | CCA | |
| Shell Material | Galvanized Steel Sheet | |
| Stator | Diameter | 48.5mm |
| Thickness | 8mm | |
| Slot Number | 12 | |
| Material | Silicon Steel | |
| Rated-Load | Speed (r/min) | 1100 |
| Input Power (W) | 18 | |
| Noise (dB(A)) | ＜40 | |
| Operation Life (Hours) | ＞8000 | |
| Application | Bedroom ceiling fan, Bathroom heater, Pedestal fan, Cirulation fan, Exhaust fan | |
1、24V 18W Configuration for Compact Fan Systems
BE5810A001 uses a 24V power system with 18W input power and runs at 1100 r/min under rated load. This configuration is suitable for table fan projects that need moderate speed and controlled power consumption. Our factory can test the motor with the buyer’s blade and driver to verify startup, airflow and running current before bulk production.
2、48.5mm Silicon Steel Stator with 12 Slots
The motor uses a 48.5mm diameter, 8mm thick silicon steel stator with a 12-slot structure. These parameters support a compact body while providing the magnetic structure needed for stable rotation. During production, stator dimensions, slot condition and winding data follow the approved sample to improve consistency between batches.
3、CCA Winding and Galvanized Steel Shell
CCA wire is used for the motor winding, while the galvanized steel sheet shell protects the internal stator and rotor structure. The metal shell also supports installation inside compact fan housings. Our production checks cover winding arrangement, shell assembly and visible motor condition before delivery.
4、Low Noise with More Than 8000 Hours Operation Life
The motor operates below 40dB(A), making it suitable for table fans used in quieter indoor environments. Its listed operation life exceeds 8000 hours when used under the confirmed electrical and load conditions. Factory inspection can include rated-load speed, noise, vibration, startup and continuous running performance.
1、Household Table Fans
This Table Fan Motor can be used in compact household fans for bedrooms, study rooms, living areas and office desks. Its below-40dB(A) operating noise is suitable for products used close to the user, while the 24V system can be matched with a compatible fan driver.
2、Desktop Air Circulation Fans
Model BE5810A001 can be evaluated for compact circulation fans requiring continuous directional airflow. The 1100 r/min rated-load speed should be tested with the actual fan blade and air duct to confirm airflow, current and temperature rise.
3、Pedestal and Compact Floor Fans
The product specification also supports evaluation for selected pedestal fan designs. Buyers should confirm whether the 18W power, blade load and mounting structure meet the finished appliance requirements before production.
4、Other Ventilation Equipment
The listed application range includes bedroom ceiling fans, bathroom heaters, circulation fans and exhaust fans. The motor configuration must be reviewed according to the blade, installation space, driver and required airflow for each appliance.
1、Keep the Ventilation Area Clean
Dust around the motor and fan housing can affect heat dissipation. The ventilation openings should be cleaned regularly without allowing water to enter the motor or driver.
2、Check the Blade and Shaft Connection
A loose or unbalanced blade may increase noise, vibration and motor load. The blade hub should fit the shaft correctly and remain stable during operation.
3、Monitor Running Noise and Temperature
An unusual increase in noise or temperature may indicate blade imbalance, blocked airflow, incorrect loading or a driver mismatch. The finished fan should be stopped and inspected before continued use.
4、Protect Wiring and Connectors
Loose terminals or damaged wires may cause unstable startup and speed changes. The appliance should be disconnected from the power source before the wiring is checked.
For a Table Fan Motor quotation, please send us the required quantity, fan blade details, shaft and mounting dimensions, driver or control board information, connector requirement and destination market. Our team can evaluate model BE5810A001 according to the complete fan structure and arrange motor sampling, driver matching and finished-fan testing before production.
