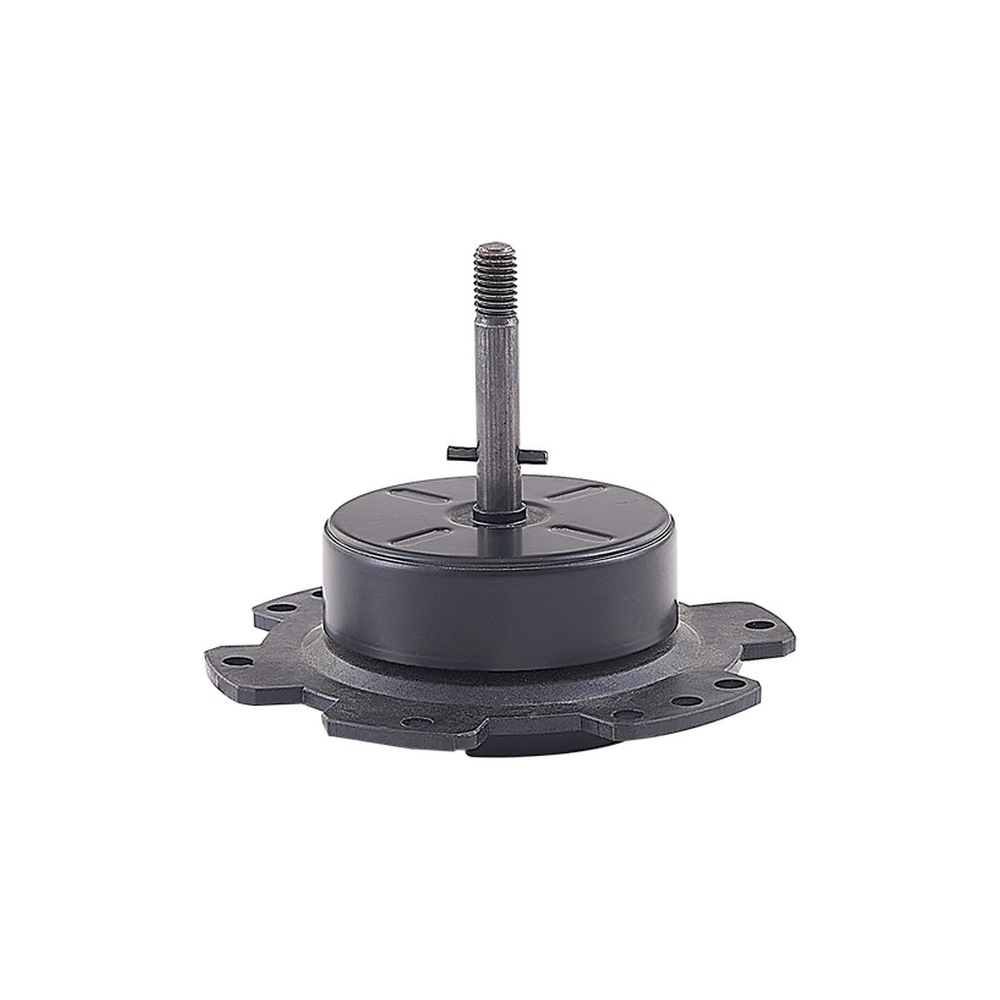

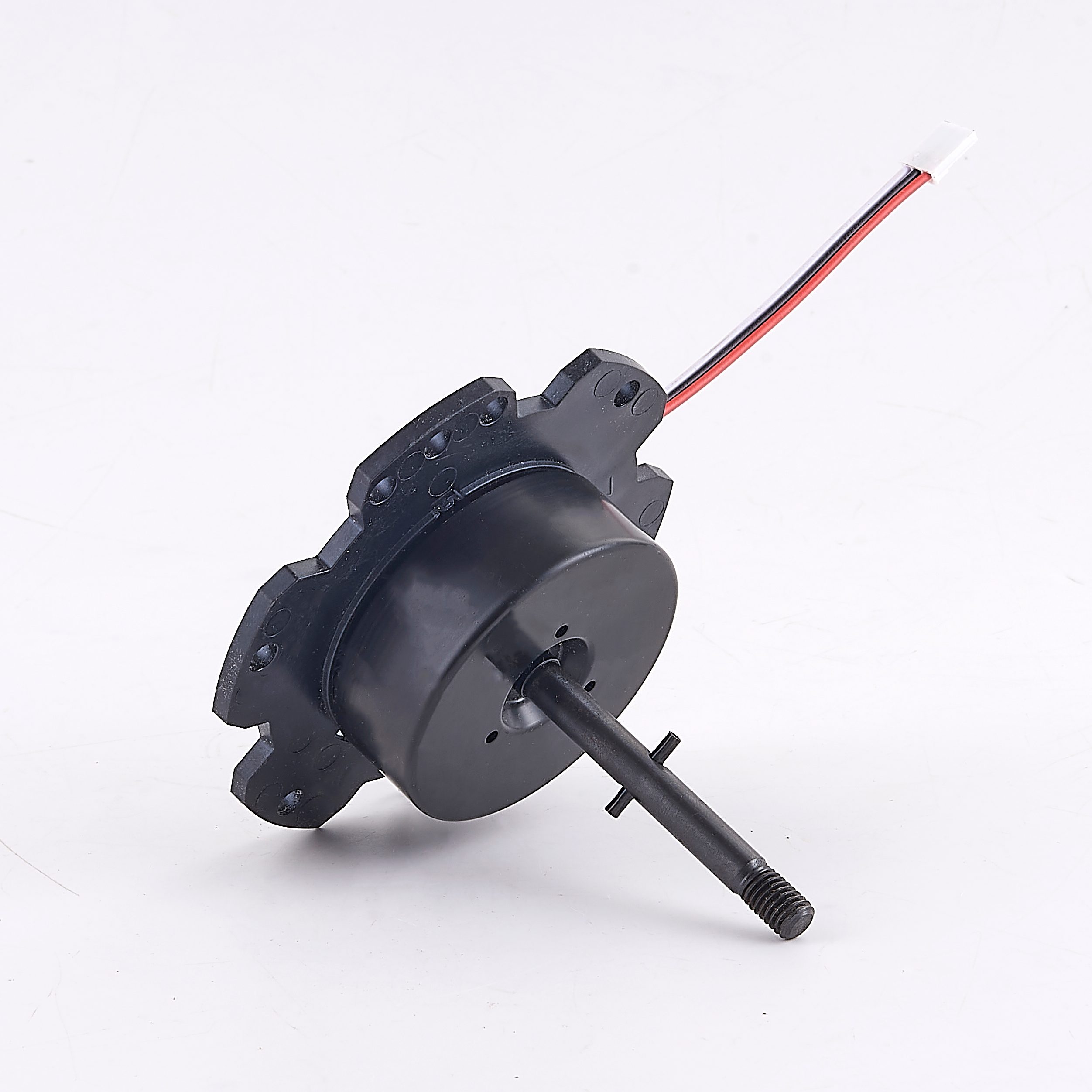

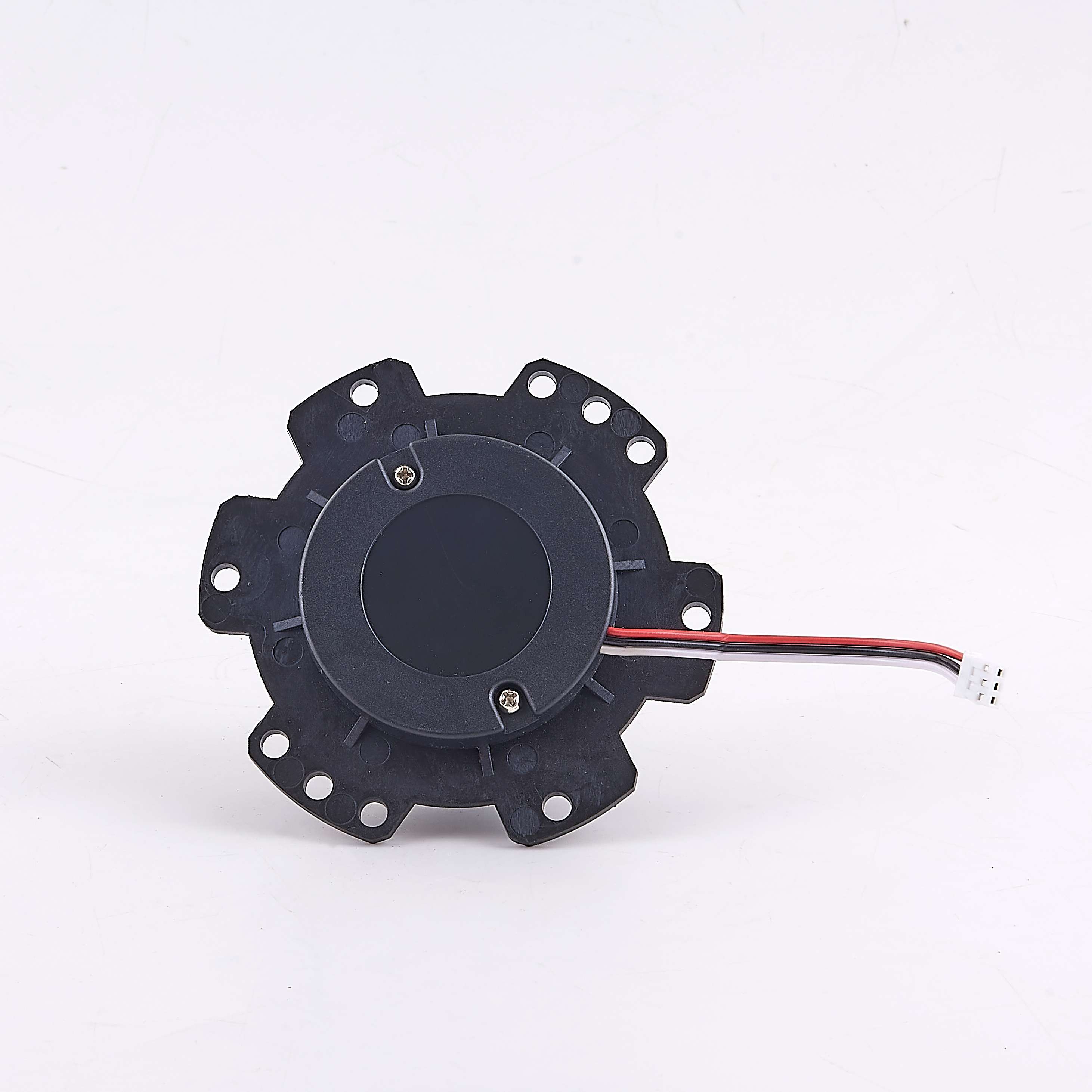

Heat buildup is a common concern in table fan motors because it can reduce operating stability, shorten service life, and increase repair or replacement costs. The DC Table Fan Motor is developed with fast heat dissipation to release operating heat more efficiently during continuous daily use. It is suitable for household table fans, office desk fans, compact cooling appliances, and other small indoor air circulation products. Reliable thermal performance helps manufacturers and distributors reduce overheating concerns, maintain more consistent product quality, and prepare dependable motor stock for fan assembly, maintenance, and repeat B2B orders.

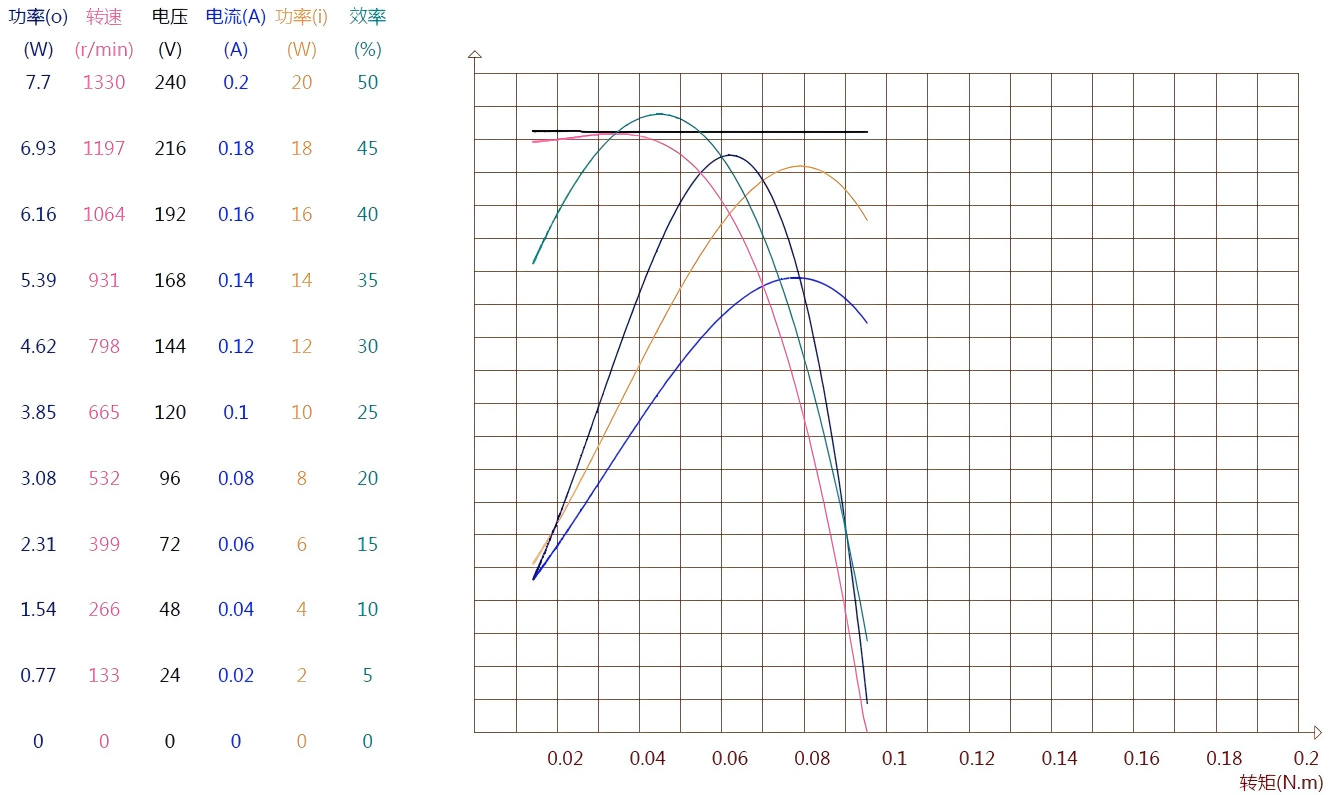

63A Performance curves

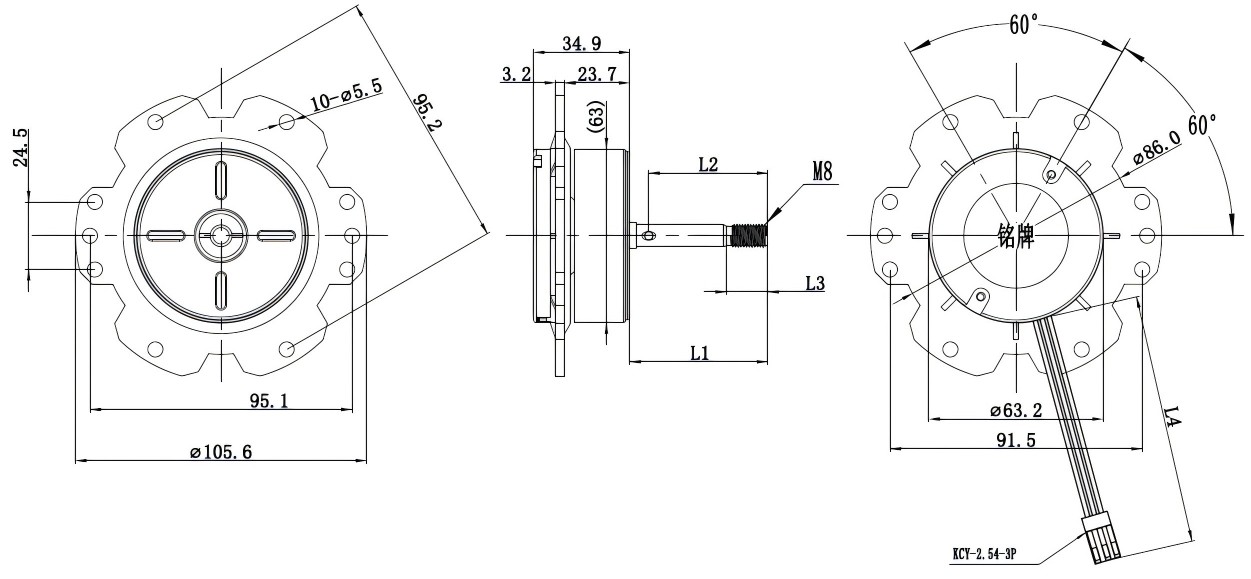

63A External dimensions
| Model No. | BE4010A024 | BE4010A008 | |
| Voltage | 24V | 24V | |
| Wire | CCA | CCA | |
| Shell Material | galvanized steel sheet | galvanized steel sheet | |
| Stator | Diameter | 54.4mm | 54.4mm |
| Thickness | 7mm | 10mm | |
| Slot Number | 12 | 12 | |
| Material | silicon steel | silicon steel | |
| Rated-Load | Speed (r/min) | 1200 | 1300 |
| Power (W) | 18 | 18 | |
| Noise (dB(A)) | ＜40 | ＜40 | |
| Operation Life (Hours) | ＞8000 | ＞8000 | |
| Application | Bedroom ceiling fan, Bathroom heater, Pedestal fan, Cirulation fan, Exhaust fan | ||
1、Household Table Fans
DC Table Fan Motor can be used in table fans for bedrooms, study rooms, kitchens and living spaces. The motor configuration can be adjusted according to the required airflow, speed control and product size.
2、Rechargeable Table Fans
Rechargeable fan projects require the motor, battery and driver to work together. Buyers should confirm battery voltage, capacity, expected operating time and charging system before selecting the motor.
3、Desktop Air Circulators
Desktop air circulators usually require concentrated airflow and stable operation across several speed levels. Motor torque should be matched with the blade and air duct structure.
4、Remote-Control Table Fans
The motor can be matched with electronic control systems for speed adjustment, timer settings, natural wind modes and remote operation. Control signals and driver interfaces should be confirmed before sampling.
5、Replacement Motor Supply
Appliance distributors and spare-parts buyers can purchase DC motors for existing table fan models. Voltage, shaft dimensions, mounting holes, connector type and rotation direction must be checked carefully before ordering.
1、Use the Correct Driver and Voltage
The DC Table Fan Motor should only be connected to the approved voltage and compatible driver. Incorrect electrical matching may cause unstable startup, excessive current or motor damage.
Replacement motor buyers should compare the original fan wiring and connector definition before installation.
2、Keep the Motor Area Ventilated
Dust around the motor and ventilation openings may reduce heat dissipation. The internal fan area should be cleaned regularly without allowing water to enter the motor or control board.
For branded fan products, clear cleaning instructions should be included in the user manual to reduce maintenance-related complaints.
3、Check the Fan Blade Connection
A loose or unbalanced blade may create vibration, noise and additional load on the motor. The blade hub should fit the motor shaft correctly and remain secure during operation.
If abnormal vibration occurs, the blade balance and shaft connection should be checked before replacing the motor.
4、Inspect Wires and Connectors
Loose terminals, damaged wires or incorrect connector positions may cause intermittent operation. The power supply should be disconnected before wiring is inspected.
Connector type, wire length and terminal definition should remain consistent with the approved production sample.
5、Monitor Noise and Temperature Changes
An increase in operating noise or temperature may be caused by blocked ventilation, blade imbalance, bearing wear or incorrect loading. The fan should be stopped for inspection when abnormal conditions appear.
Distributors can reduce unnecessary returns by providing basic troubleshooting and maintenance guidance with the finished fan.
To request a DC Table Fan Motor quotation, please provide the target voltage, rated power, speed range, fan blade diameter, blade weight, shaft dimensions, mounting method, controller information, connector type, estimated quantity and destination market.
Our team can review the motor according to the complete table fan structure and performance target. Motor sampling, driver matching, mechanical adjustment and finished fan testing can be discussed before mass production.
