Energy use and application matching often affect motor sourcing decisions for table fan projects. BLDC Table Fan Motor is developed for compact desktop fans used in homes, offices, shops, and similar indoor environments. Its energy-saving performance supports lower power consumption during regular operation. By providing a clear table fan application and straightforward purchasing value, the motor helps B2B buyers shorten product evaluation time and make faster decisions for production orders, replacement stock, and market supply.

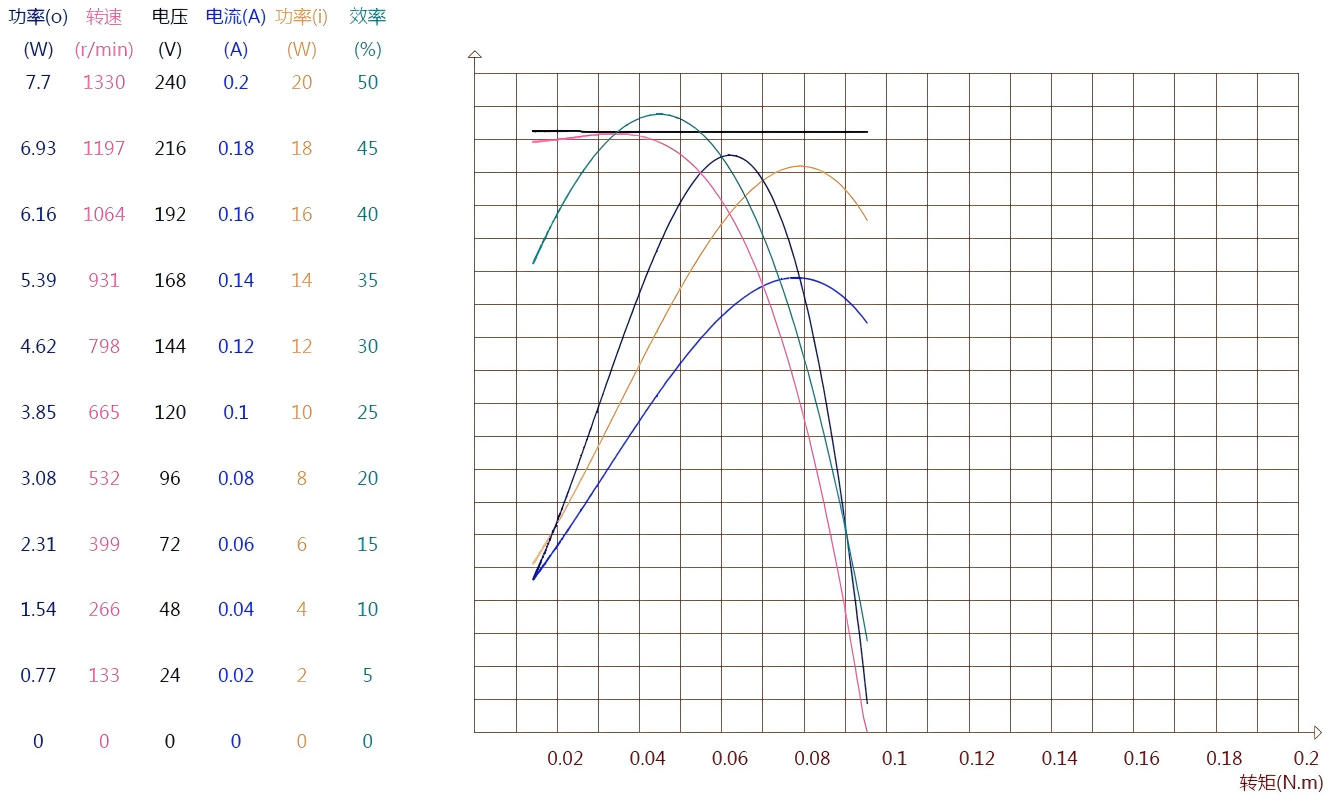

58B Performance curves

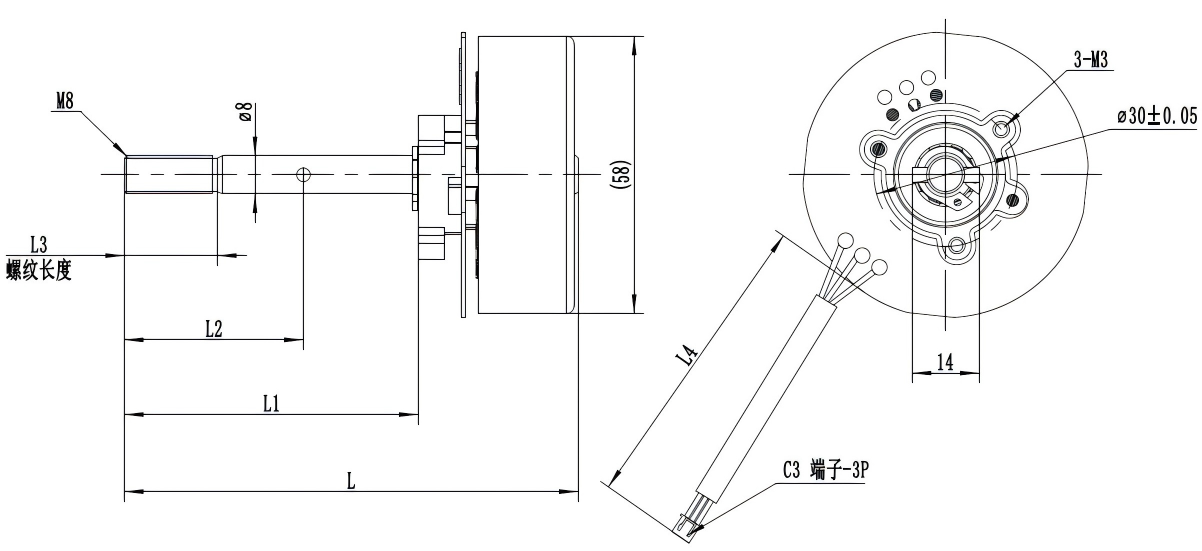

58B External dimensions
| Model No. | BE5810A007 | |
| Voltage | 24V | |
| Wire | CCA | |
| Shell Material | galvanized steel sheet | |
| Stator | Diameter | 48.5mm |
| Thickness | 8mm | |
| Slot Number | 12 | |
| Material | silicon steel | |
| Rated-Load | Speed (r/min) | 1100 |
| Power (W) | 18 | |
| Noise (dB(A)) | ＜40 | |
| Operation Life (Hours) | ＞8000 | |
| Application | Bedroom ceiling fan, Bathroom heater, Pedestal fan, Cirulation fan, Exhaust fan | |
1、24V and 18W BLDC Motor Configuration
Both BLDC Table Fan Motor models operate at 24V with 18W rated power. BE4010A024 runs at 1200 r/min, while BE4010A008 reaches 1300 r/min, giving fan manufacturers two speed options for different airflow requirements.
During project development, our factory checks the motor together with the driver and fan blade. This helps buyers select the appropriate speed and torque instead of using one configuration for every table fan design.
2、54.4mm 12-Slot Silicon Steel Stator
The two models use a 54.4mm diameter silicon steel stator with a 12-slot structure. BE4010A024 has a 7mm stator thickness, while BE4010A008 uses a 10mm stator thickness to support a different operating configuration.
The stator size, slot structure and winding data are controlled according to the approved model. This helps maintain stable speed, current and motor output across repeat production batches.
3、CCA Winding with Galvanized Steel Shell
The motor uses CCA wire and a galvanized steel sheet shell. The metal shell protects the internal motor structure and supports installation inside compact table fan housings.
Our production process checks winding consistency, shell assembly and motor dimensions before delivery. Shaft, wiring and installation details can also be reviewed according to the buyer’s fan structure.
4、Below 40dB(A) Noise and Over 8000 Hours Life
The listed operating noise is below 40dB(A), making the motor suitable for table fans used in bedrooms, offices and other indoor environments. Its operating life exceeds 8000 hours under the confirmed specification and suitable working conditions.
Factory testing can cover rated-load speed, startup, running noise, vibration and overall operation. Buyers are advised to test the motor inside the complete fan before approving mass production.
1、Household Table Fans
The motor can be used in household table fans for bedrooms, living rooms and study areas. The two available speed configurations allow manufacturers to select the motor according to the required blade load and airflow.
2、Desktop Air Circulation Fans
A BLDC Table Fan Motor can be matched with compact air circulation products that require directional airflow and several speed settings. The fan blade and air duct should be tested together with the motor.
3、Remote-Control Table Fans
The motor can work with a compatible BLDC driver for table fans requiring electronic speed adjustment, timer functions or remote operation. The controller interface should be confirmed before sampling.
4、Low-Voltage Fan Systems
The 24V configuration is suitable for selected low-voltage table fan projects. Buyers should confirm the power supply, driver input, connector definition and current requirements before installation.
5、OEM Fan Motor Replacement
Fan manufacturers and motor distributors can use these models for new development or compatible replacement projects. Stator size, shaft structure, mounting dimensions, speed and wiring must be compared with the original motor.
1、Fan Blade Load
Blade diameter, weight, pitch and quantity affect the torque required from the motor. Buyers should provide the actual blade or detailed blade data during motor selection.
2、Speed and Airflow
The choice between 1200 r/min and 1300 r/min should be based on the required airflow and fan structure. A higher rated speed does not automatically mean better finished fan performance if the blade and housing are not matched correctly.
3、Driver and Control Method
The motor requires a compatible BLDC driver. Buyers should confirm speed levels, control signals, connector type, rotation direction and available protection functions before sample production.
4、Installation Dimensions
The motor shell, shaft, mounting points and wire direction need to fit the table fan housing. Drawings or original samples can help reduce installation adjustments during final assembly.
1、Use the Approved Power Supply
The motor should be connected to the confirmed 24V power system and compatible driver. Incorrect voltage or driver output may affect startup, speed and temperature rise.
2、Keep the Motor Area Clean
Dust around the motor and ventilation openings may reduce heat dissipation. The fan housing should be cleaned regularly without allowing water to enter the motor or control board.
3、Check Blade Balance
An unbalanced or loose blade may increase vibration, noise and motor load. The blade hub should fit the shaft correctly and remain secure during operation.
4、Monitor Noise and Temperature
Unusual noise, vibration or temperature changes may indicate blade imbalance, blocked ventilation or an incorrect electrical load. The fan should be stopped and checked before continued use.
For a BLDC Table Fan Motor inquiry, please provide the required model, target speed, fan blade information, shaft and mounting dimensions, driver or control board details, connector requirement, estimated quantity and destination market.
Our team can evaluate the 24V 18W motor configuration according to your table fan structure and airflow target. Motor sampling, driver matching and complete fan testing can be discussed before mass production.
