Energy Efficient Reversible Motor Ceiling Fan

1、Three 24V 30W Speed Configurations

The series includes 550 r/min, 380 r/min and 350 r/min options, all operating at 24V with 30W power. This gives buyers more flexibility when matching different retractable or decorative fan blades.

Our factory develops BLDC fan motors and control systems, allowing the selected motor to be tested with the buyer’s driver, blade and complete fan structure before mass production.

2、74mm 18-Slot Silicon Steel Stator

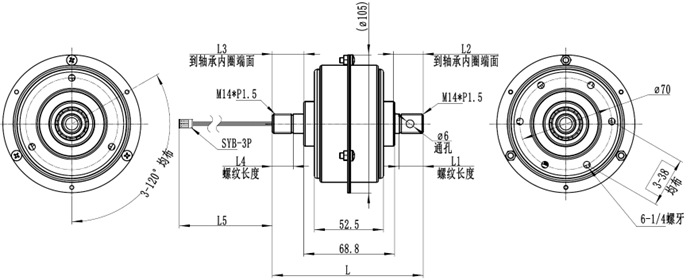

All three models use a 74mm diameter silicon steel stator with 18 slots. Available stator thicknesses are 8mm, 12mm and 14mm, supporting different speed and load requirements within the same motor range.

During production, stator dimensions, slot structure and winding data follow the approved model. This helps maintain stable electrical output across repeat batches.

3、100% Copper Winding and Steel Shell

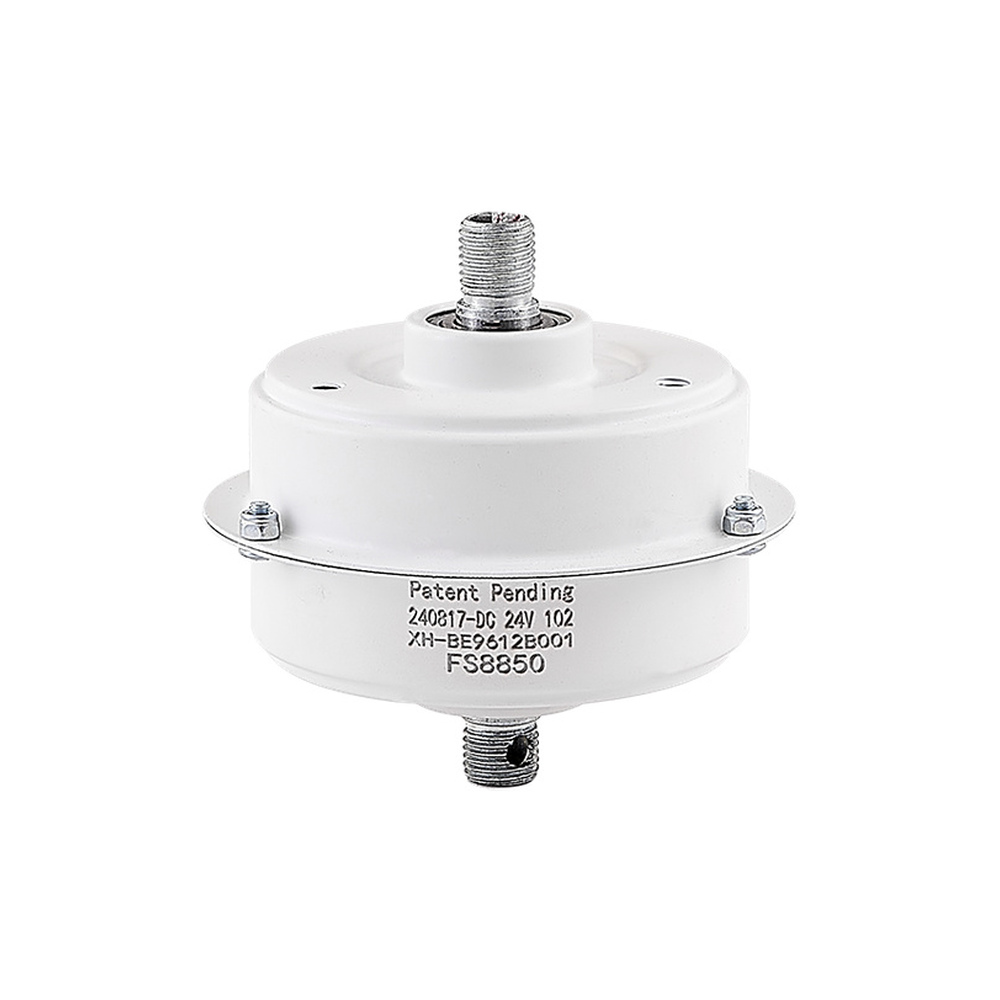

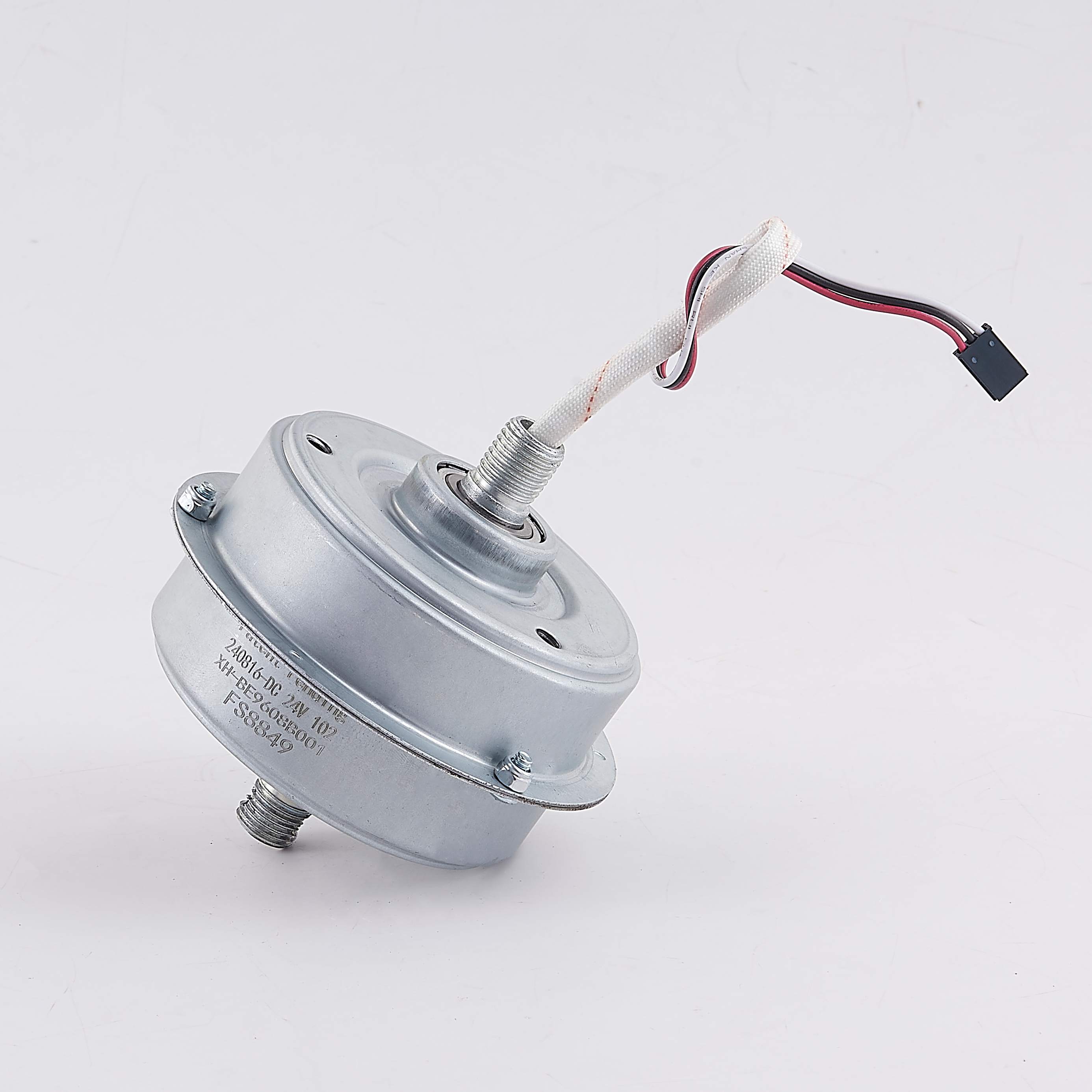

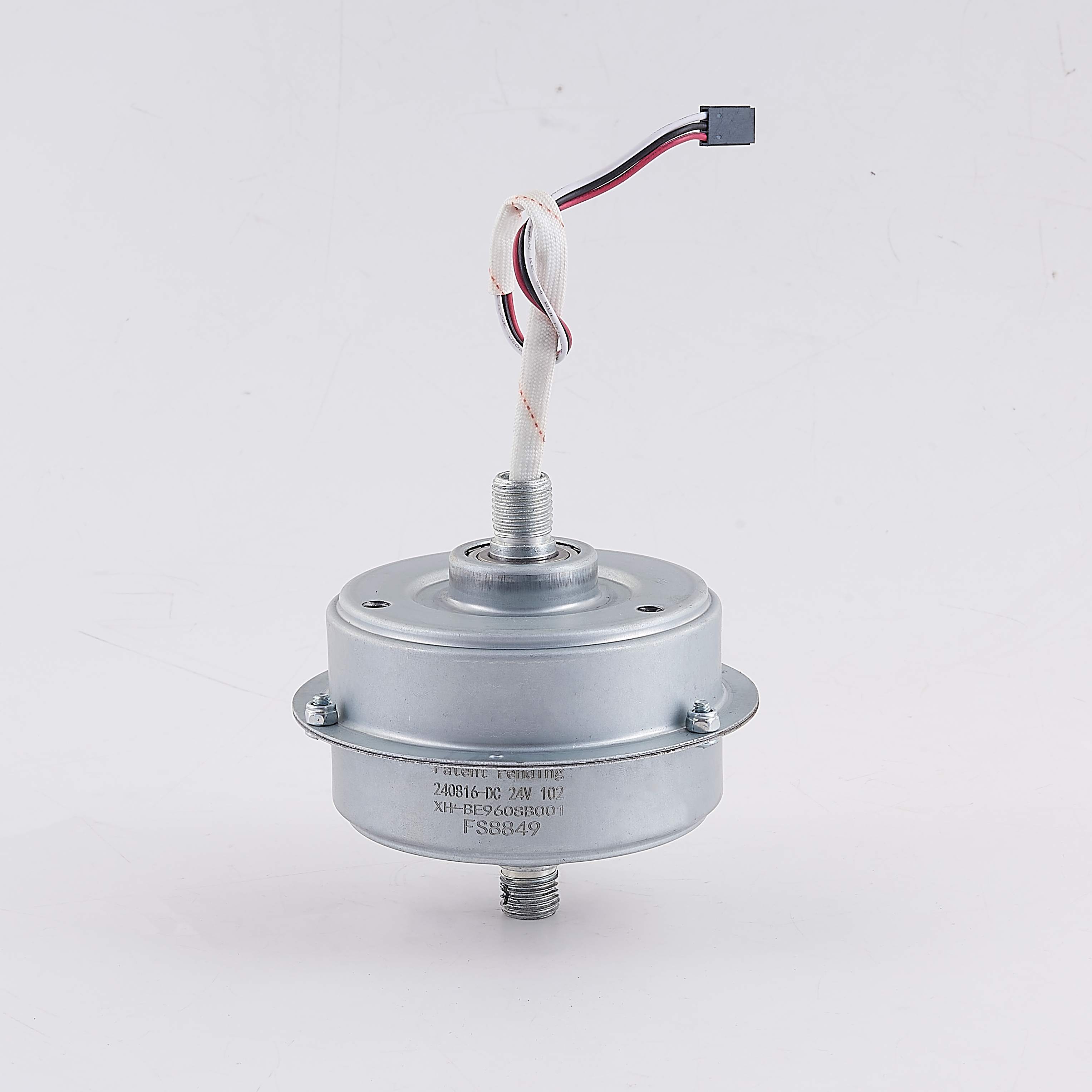

The motor uses 100% copper wire to support stable conductivity and continuous ceiling fan operation. The galvanized steel sheet shell protects the internal stator and rotor while supporting compact installation.

Factory inspection covers winding consistency, shell assembly and model identification. Wiring, connector and installation requirements can also be reviewed according to the finished fan design.

4、Low Noise and Extended Operating Life

The operating noise of all three models is below 40dB(A), making them suitable for living rooms, bedrooms and other indoor environments. Their listed operating life exceeds 8000 hours under suitable working conditions.

Production testing can cover startup, rated-load speed, running noise, vibration and rotation direction. Complete fan testing is recommended because blade balance and mounting also affect final performance.

Reversible System Matching

1、Direction Control

The reversible function depends on a compatible BLDC driver. Buyers should confirm forward and reverse rotation requirements, switching method and controller program before sampling.

2、Blade and Speed Matching

Higher speed is not automatically suitable for every fan. Blade diameter, weight, pitch and retractable mechanism should be considered when choosing between 550, 380 and 350 r/min.

3、Controller Compatibility

The controller should match the 24V motor configuration, connector definition and required speed levels. Any timer, lighting or remote-control functions should be confirmed separately.

4、Complete Fan Testing

The motor, driver, blade and lighting structure should be tested as one finished system. Testing should cover direction switching, startup, airflow, current, noise, vibration and temperature rise.

1、Retractable Ceiling Fans with Lights

The motor series is suitable for retractable ceiling fans that combine lighting and ventilation functions. Motor speed, blade opening structure and controller timing should be tested together before production.

2、Nordic-Style Ceiling Fans

Nordic-style ceiling fans often use compact decorative housings and lightweight blade structures. The three available speed options help manufacturers select a configuration that matches the intended blade size and airflow.

3、Living Room Decorative Fans

A Reversible Motor Ceiling Fan can be used in living rooms where appearance, quiet operation and seasonal air circulation are important. The below-40dB(A) specification supports indoor use close to occupants.

4、Bedroom Ceiling Fan Projects

The motor can be evaluated for bedroom ceiling fans requiring controlled airflow and reduced operating noise. Low-speed performance should be checked with the actual blade and driver.

5、OEM Ceiling Fan Development

Fan brands and manufacturers can use the series for new reversible ceiling fan platforms. The final model should be selected according to the blade structure, motor housing, airflow target and controller functions.

1、Keep the Motor Area Ventilated

Dust inside the ceiling canopy may affect motor and driver heat dissipation. The internal area should remain clean and dry during use.

2、Check Retractable Blade Movement

For retractable ceiling fans, all blades should open and close evenly. Uneven blade movement may create additional vibration and motor load.

3、Inspect Direction Switching

If the fan cannot change direction correctly, the controller settings, connector and wiring should be checked before replacing the motor.

4、Check Mounting Components

Motor brackets, suspension rods and connecting screws should remain secure. Loose mounting parts may increase noise and affect fan stability.

5、Monitor Noise and Temperature

An unusual increase in noise or operating temperature may indicate blade imbalance, blocked ventilation or incorrect driver matching. Clear troubleshooting instructions can help B2B buyers reduce avoidable returns.

Order Guidance

For a Reversible Motor Ceiling Fan quotation, please provide the required motor model, blade size, blade weight, target speed, forward and reverse functions, controller information, mounting dimensions, expected quantity and destination market.

Our team can help compare the 550 r/min, 380 r/min and 350 r/min options and arrange motor sampling, driver matching, reversible control testing and complete fan evaluation before production.
