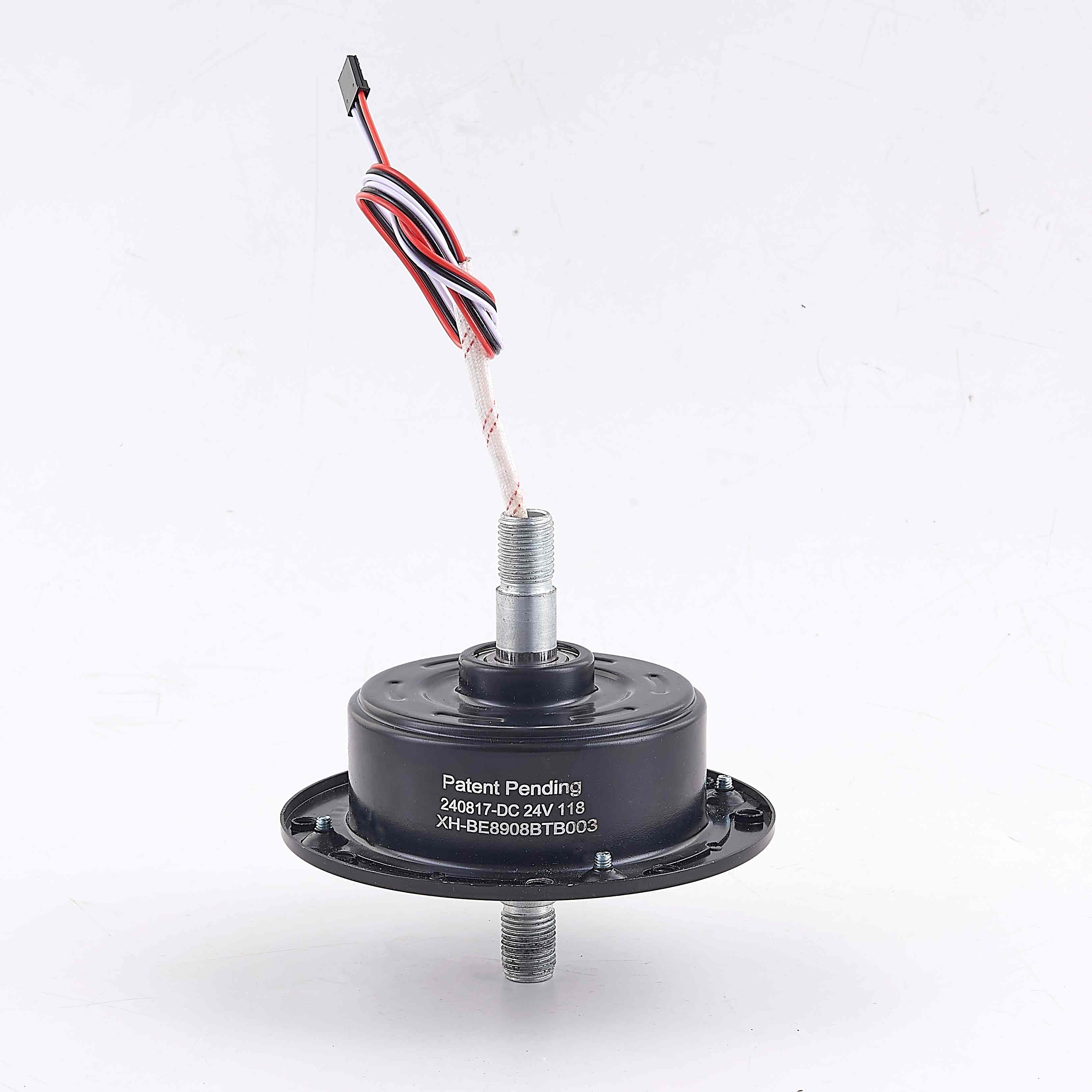

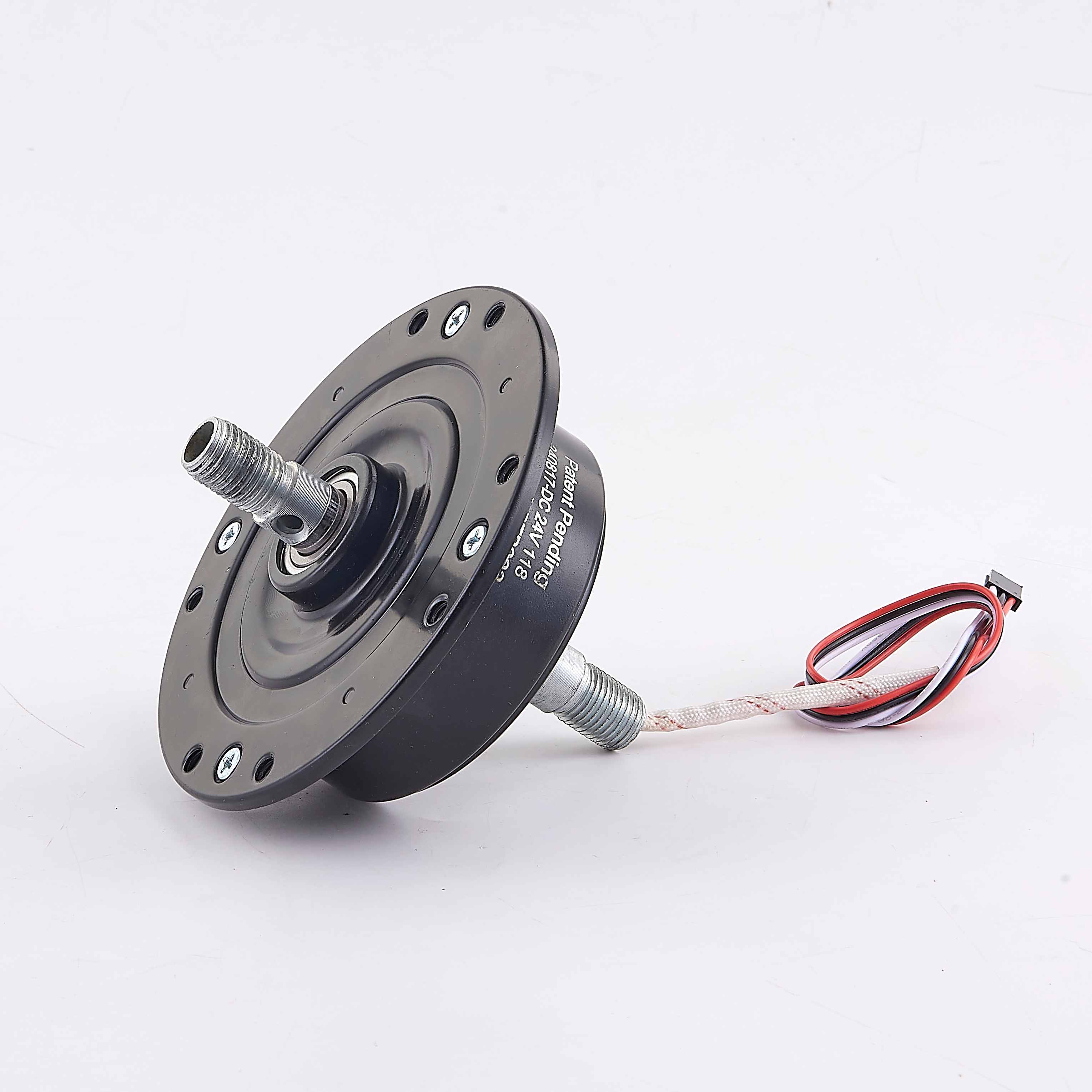

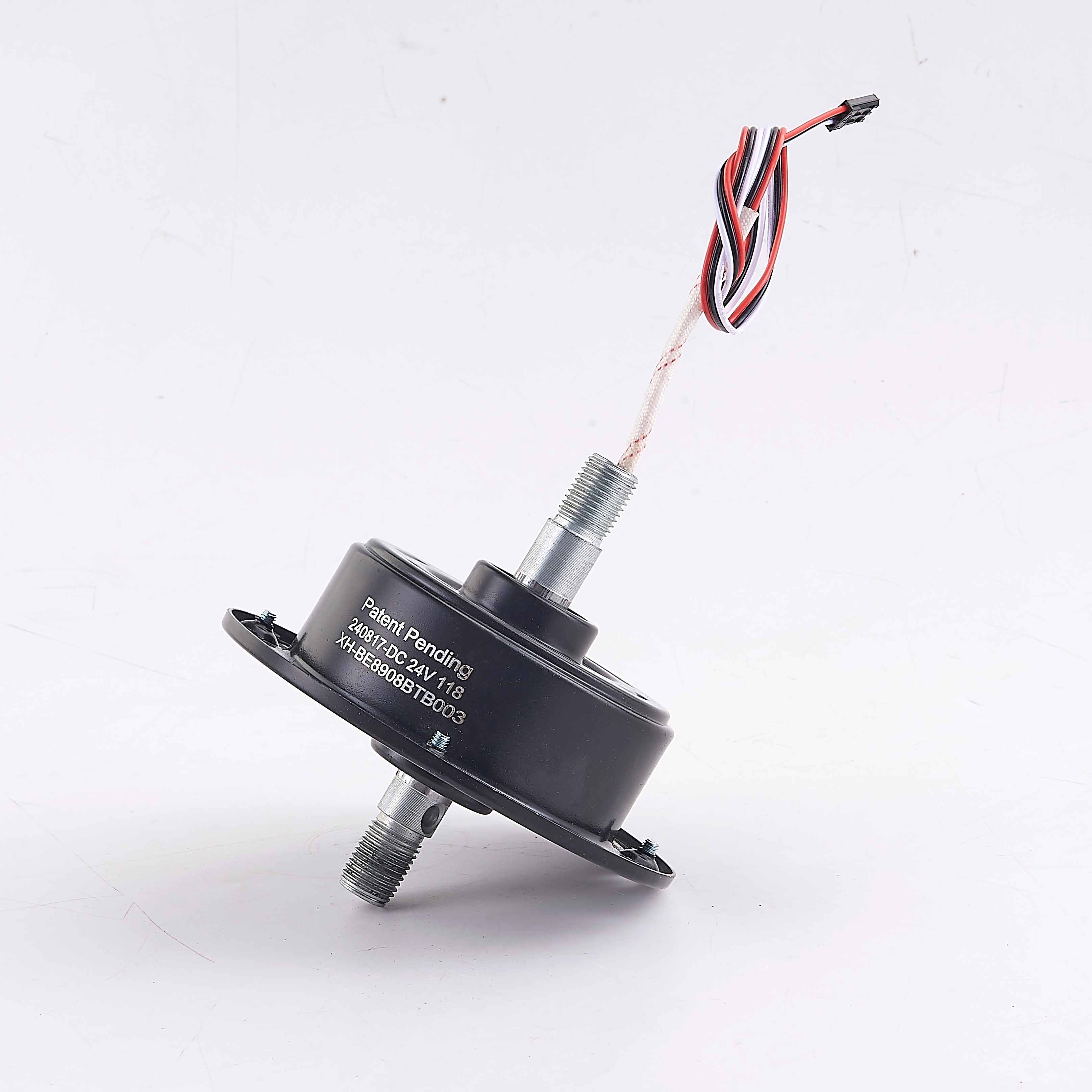

Space Saving Ceiling Fan Motor Replacement Parts

1、Four Models for Replacement Matching

The series includes BE8908B003, BE8910B001Q, BE8912B001Q and BE8915B001Q. Their stator thicknesses are 8mm, 10mm, 12mm and 14mm, giving repair buyers several options for matching different original fan structures.

Our factory controls model identification, stator dimensions and winding data according to the approved sample. This helps reduce incorrect substitutions when several similar Ceiling Fan Motor Replacement Parts are stocked in the same warehouse.

2、24V 30W Motor Platform

All four models operate at 24V with 30W rated power. BE8908B003 runs at 240 r/min, BE8910B001Q and BE8912B001Q run at 250 r/min, while BE8915B001Q reaches 260 r/min.

These speed differences allow buyers to select the motor according to the original blade load and airflow requirement. Factory testing can check startup, rated speed and operating current with the customer’s driver before batch supply.

3、74mm Copper-Wound Stator Structure

Each motor uses a 74mm diameter, 18-slot silicon steel stator with 100% copper winding. The galvanized steel sheet shell protects the internal structure and supports installation inside compact fan-light housings.

During production, winding consistency, stator thickness and shell assembly are checked against the confirmed model. This is important for replacement programs where repeat batches must remain compatible with an existing fan design.

4、Low-Noise Replacement for Indoor Fans

The listed operating noise is below 40dB(A), supporting use in living rooms, bedrooms and other indoor areas. The operation life exceeds 8000 hours when the motor is installed with the correct driver, blade load and ventilation conditions.

Inspection can cover running noise, vibration, rotation, speed and general assembly condition. Buyers should still test the replacement motor inside the complete fan because the blade and mounting system also affect final performance.

1、Retractable Ceiling Fan Repair

These motors can be used for replacement programs involving retractable ceiling fans with lights. The selected motor should match the original blade-opening mechanism, driver and rated speed.

2、Nordic-Style Ceiling Fan Maintenance

Nordic-style ceiling fans often use compact motor housings and decorative blade systems. The shared 74mm stator diameter provides several thickness options for different internal structures.

3、After-Sales Service Centers

Fan brands and service centers can stock selected models for warranty repairs and post-warranty maintenance. Clear model labels help technicians avoid installing the wrong speed or stator configuration.

4、Spare-Parts Distribution

Electrical appliance parts distributors can use this range for compatible ceiling fan motor supply. Original motor samples or complete dimensional data should be collected before offering a replacement recommendation.

5、OEM Product Lifecycle Support

Ceiling fan manufacturers can keep approved motors as spare parts after a fan model enters mass production. This supports later maintenance without redesigning the complete fan platform.

1、Check the Original Model

The original motor label should be recorded before removal. Model number, voltage, power and rated speed provide the first reference for selecting a replacement.

2、Compare Stator Thickness

Although all four models use a 74mm stator diameter, their thicknesses are different. Housing depth and internal clearance should be measured before choosing the 8mm, 10mm, 12mm or 14mm version.

3、Confirm Wiring and Driver

The replacement motor must work with the existing 24V driver. Connector type, wire sequence, rotation direction and speed-control method should be checked before installation.

4、Test the Blade Load

A replacement should be tested with the original blade assembly. Startup, airflow, current, vibration and operating temperature should be reviewed before the fan is returned to service.

Maintenance and After-Sales Guidance

1、Keep Replacement Records

Service teams should record the installed motor model, fan model and repair date. This makes future maintenance and repeat spare-parts orders easier to manage.

2、Inspect Blade Balance

Uneven or damaged blades can cause vibration even when the replacement motor is working correctly. Blade condition should be checked before a motor fault is confirmed.

3、Protect Wiring Connections

Loose terminals or damaged connectors may create unstable startup or speed changes. Wiring should follow the approved connection diagram.

4、Check Housing Ventilation

Dust inside the canopy and motor housing can affect heat dissipation. The internal area should remain clean and dry after replacement.

5、Separate Motor and Controller Faults

A fan that does not start may have a motor, driver, receiver or wiring problem. Basic troubleshooting can reduce unnecessary motor returns and improve after-sales efficiency.

Order Guidance

For a Ceiling Fan Motor Replacement Parts inquiry, please provide the original motor model, fan model, stator thickness, rated speed, mounting dimensions, connector details, driver information, required quantity and destination market.

Our team can compare the 8mm, 10mm, 12mm and 14mm stator options and arrange compatibility testing before bulk supply. Sending an original motor or complete fan sample will help us confirm the correct replacement more accurately.
