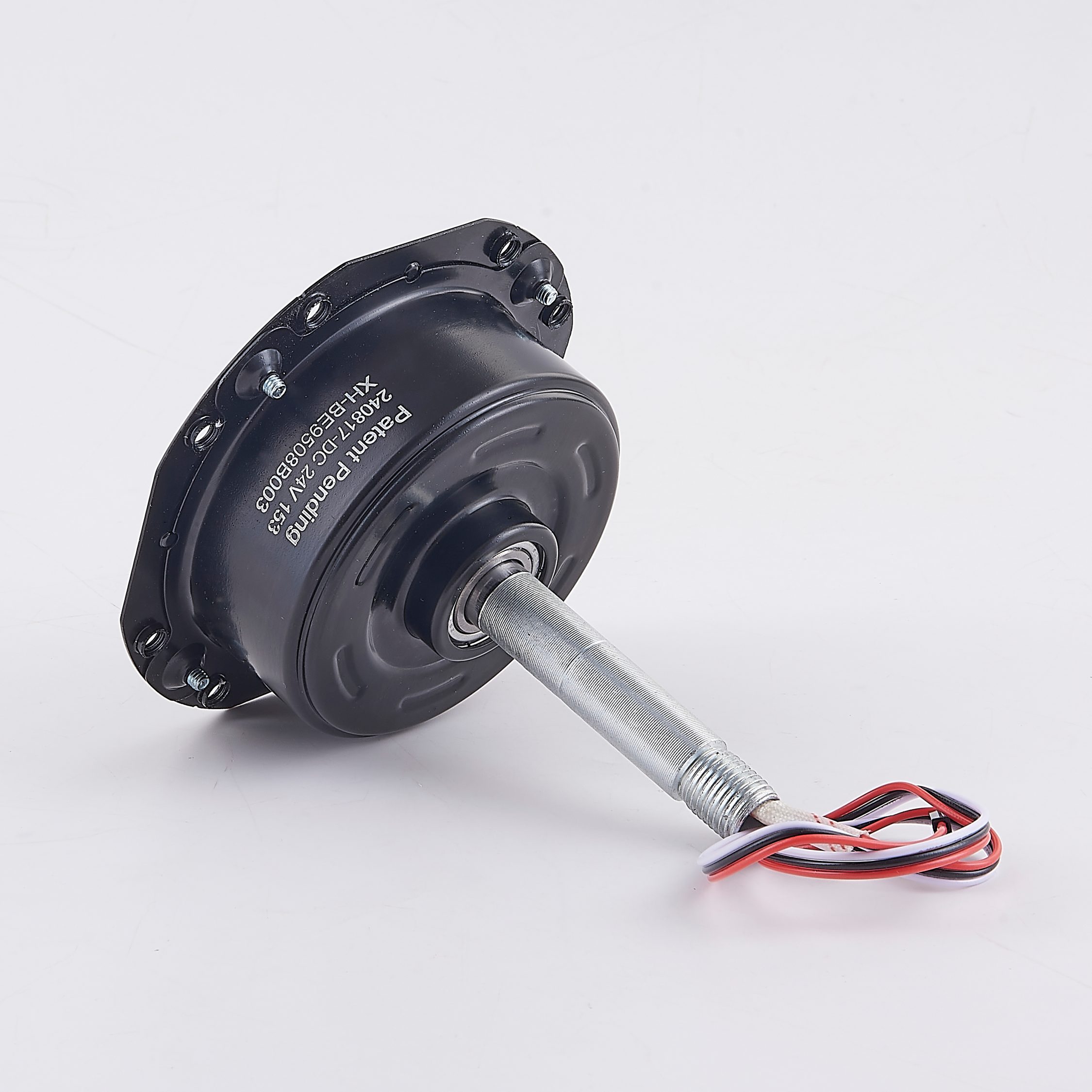

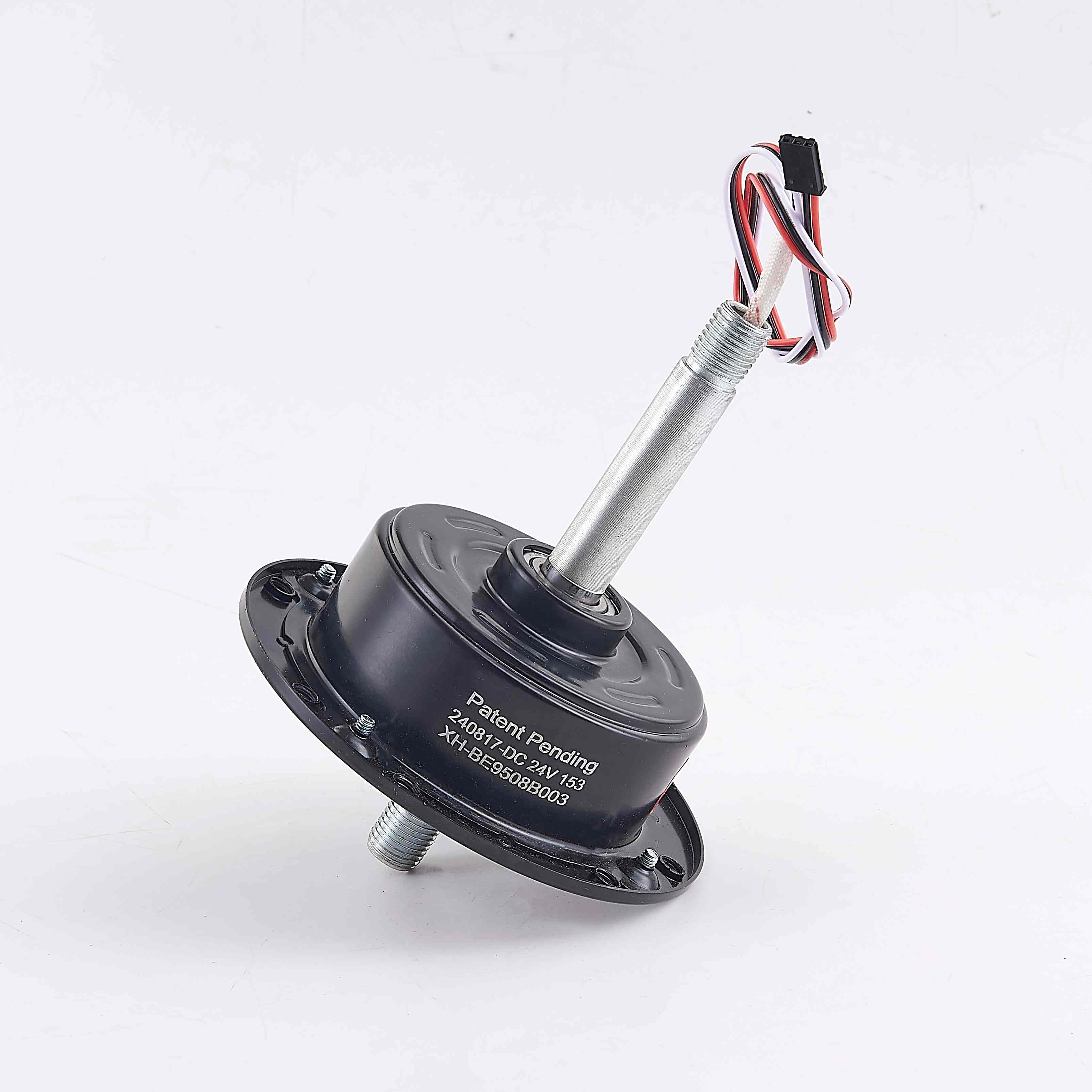

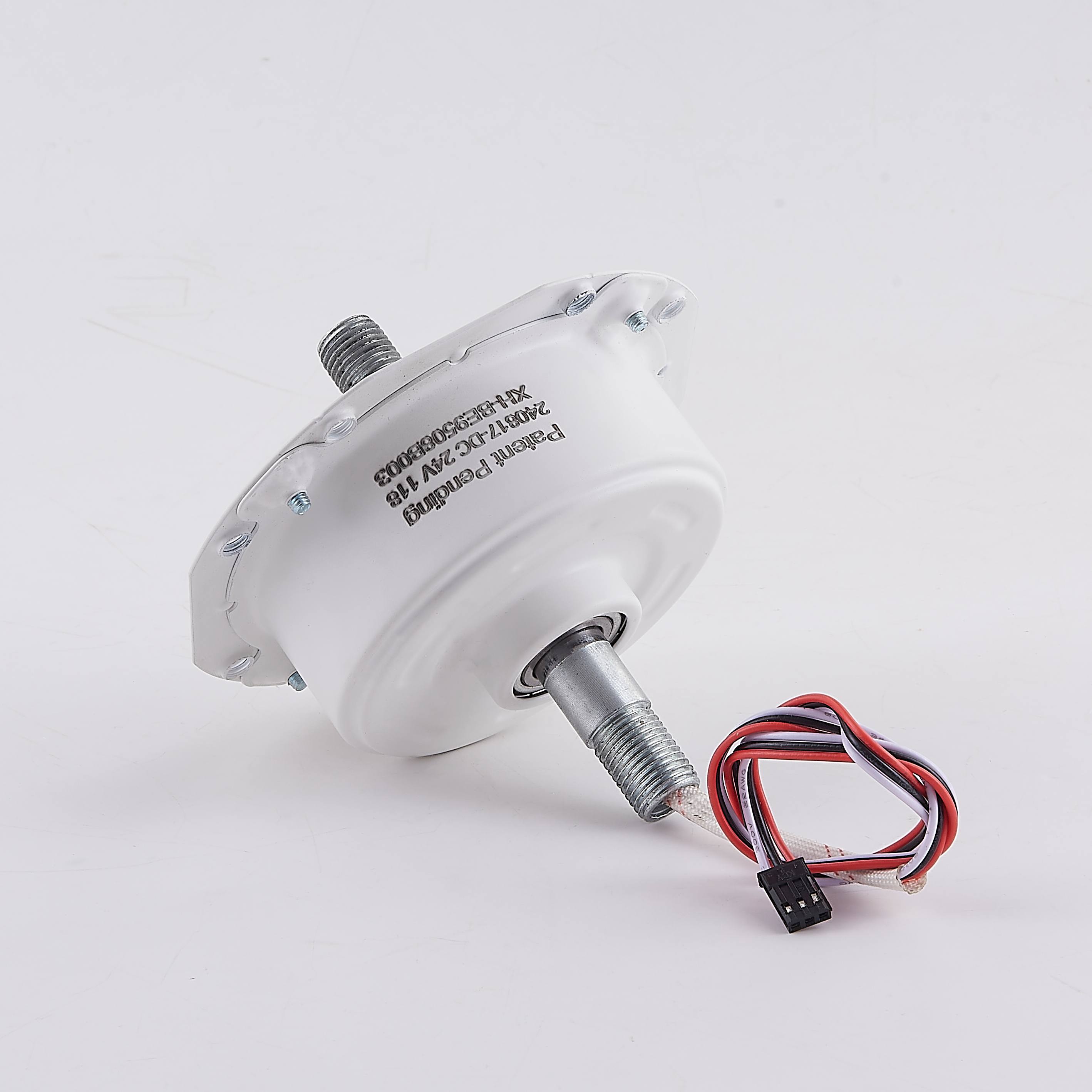

Stable Performance Ceiling Fan With Light DC Motor

1、Compact 74mm Motor Structure for Fan-Light Housings

The complete series uses a 74mm stator diameter, helping the motor fit inside compact decorative ceiling fan housings. This is important for ceiling fans that also need space for a light module, driver, receiver and internal wiring.

Our factory can review the motor position together with the customer’s light structure and housing drawing. This helps reduce interference between the motor, lamp components and control parts during assembly.

2、Four Stator Thickness Options for Different Blade Loads

BE9508B003 uses an 8mm stator, while BE9510B001Q, BE9512B001Q and BE9515B001Q use 10mm, 12mm and 14mm stators. All models operate at 24V and 30W, with rated-load speeds of 240, 250 or 260 r/min.

The different stator thicknesses allow buyers to select a suitable configuration according to blade size, retractable mechanism and required airflow. Production follows the approved stator and winding specification to keep repeat orders consistent.

3、100% Copper Winding for Stable Electrical Performance

The Ceiling Fan With Light DC Motor uses 100% copper wire and an 18-slot silicon steel stator. This combination supports stable motor output and continuous operation in household fan-light products.

During production, winding data, wire arrangement and motor assembly are checked according to the confirmed model. This helps reduce differences in speed, current and startup performance between batches.

4、Low-Noise Operation for Living Spaces

The operating noise is below 40dB(A), making the motor suitable for ceiling fans installed in bedrooms, living rooms and other indoor spaces. The operation life exceeds 8000 hours when the motor is matched with the correct driver and blade load.

Factory testing can include startup, rated-load speed, vibration, running noise and continuous operation. The assembled fan should also be checked because the blade, light cover and ceiling mounting can influence the final sound level.

5、Matched Operation for Retractable Fan Blades

Retractable ceiling fans require the motor speed and blade opening mechanism to work together. If the startup speed is unsuitable, the blades may not open evenly or may create extra vibration.

Our team can evaluate the motor with the customer’s actual retractable blade set and controller. This helps confirm blade extension, speed response and shutdown behavior before mass production.

1、Retractable Ceiling Fans with LED Lights

This motor range is suitable for ceiling fans that combine retractable blades and integrated LED lighting. The compact motor structure leaves more room for the light module and internal control components.

2、Nordic-Style Decorative Ceiling Fans

Nordic-style fan-light products often use slim housings, simple blade shapes and modern lighting designs. The available stator thicknesses help manufacturers match different product sizes without changing the complete motor platform.

3、Bedroom Fan-Light Products

The below-40dB(A) operating noise supports bedroom ceiling fan projects where quiet airflow and lighting are required in one product. Low-speed stability should be tested with the final controller.

4、Living Room Ceiling Fans with Lighting

Ceiling Fan With Light DC Motor can be used in living room fan-light products that require decorative appearance, moderate airflow and remote-control functions. The final model should be selected according to blade size and room coverage.

5、OEM Smart Ceiling Fan Projects

The motor can be matched with suitable drivers and receivers for multiple speeds, timer settings, lighting control and remote operation. Buyers should confirm the required functions before sample development.

Model Selection Notes:

BE9508B003 uses an 8mm stator and runs at 240 r/min. It is suitable for compact structures using lighter blades.

BE9510B001Q uses a 10mm stator and reaches 250 r/min. It provides a balanced option for standard decorative fan-light models.

BE9512B001Q also runs at 250 r/min but uses a 12mm stator. It can be considered when the blade load or continuous operating demand is higher.

BE9515B001Q uses a 14mm stator and reaches 260 r/min. It provides the thickest stator and highest rated speed within this motor series.

The final selection should be based on blade weight, blade opening structure, housing space and driver settings rather than stator thickness alone.

1、Plan the Internal Component Layout

The motor, driver, receiver and light module are often installed inside the same ceiling fan body. Buyers should confirm the available housing space and wiring direction before production.

2、Match the Motor with the Blade Mechanism

Retractable blades must open evenly during startup and return correctly when the fan stops. The motor should be tested with the actual blade mechanism instead of being evaluated without load.

3、Confirm the 24V Driver

The driver must match the 24V motor, speed settings and connector definition. Lighting control and motor control should also be arranged clearly to avoid wiring errors.

4、Check the Complete Fan Assembly

The finished product should be tested for blade opening, speed response, airflow, lighting operation, vibration, noise and temperature rise before the production standard is approved.

Maintenance and After-Sales Guidance

1、Clean the Internal Ventilation Area

Dust around the motor, driver and light module may affect heat dissipation. The canopy and ventilation openings should be kept clean and dry.

2、Inspect Retractable Blade Movement

Blades should open and close at the same time. Uneven movement may indicate loose fittings, blade imbalance or an unsuitable startup setting.

3、Check Motor and Light Wiring Separately

Loose or mixed wiring may affect both lighting and fan operation. Maintenance instructions should clearly distinguish the motor circuit from the light circuit.

4、Monitor Mounting Stability

Ceiling brackets, suspension rods and motor fasteners should remain secure. Loose parts may increase vibration and create noise during operation.

5、Record Common After-Sales Issues

Distributors should record whether complaints come from the motor, blade mechanism, light module or controller. Clear fault classification can reduce unnecessary motor replacement.

Order Guidance

For a Ceiling Fan With Light DC Motor inquiry, please provide the preferred motor model, blade size, blade weight, retractable mechanism, light module dimensions, driver details, connector requirement, order quantity and destination market.

Our team can help compare the 8mm, 10mm, 12mm and 14mm stator options and arrange motor sampling, blade-opening tests and complete fan-light system evaluation before bulk production.
