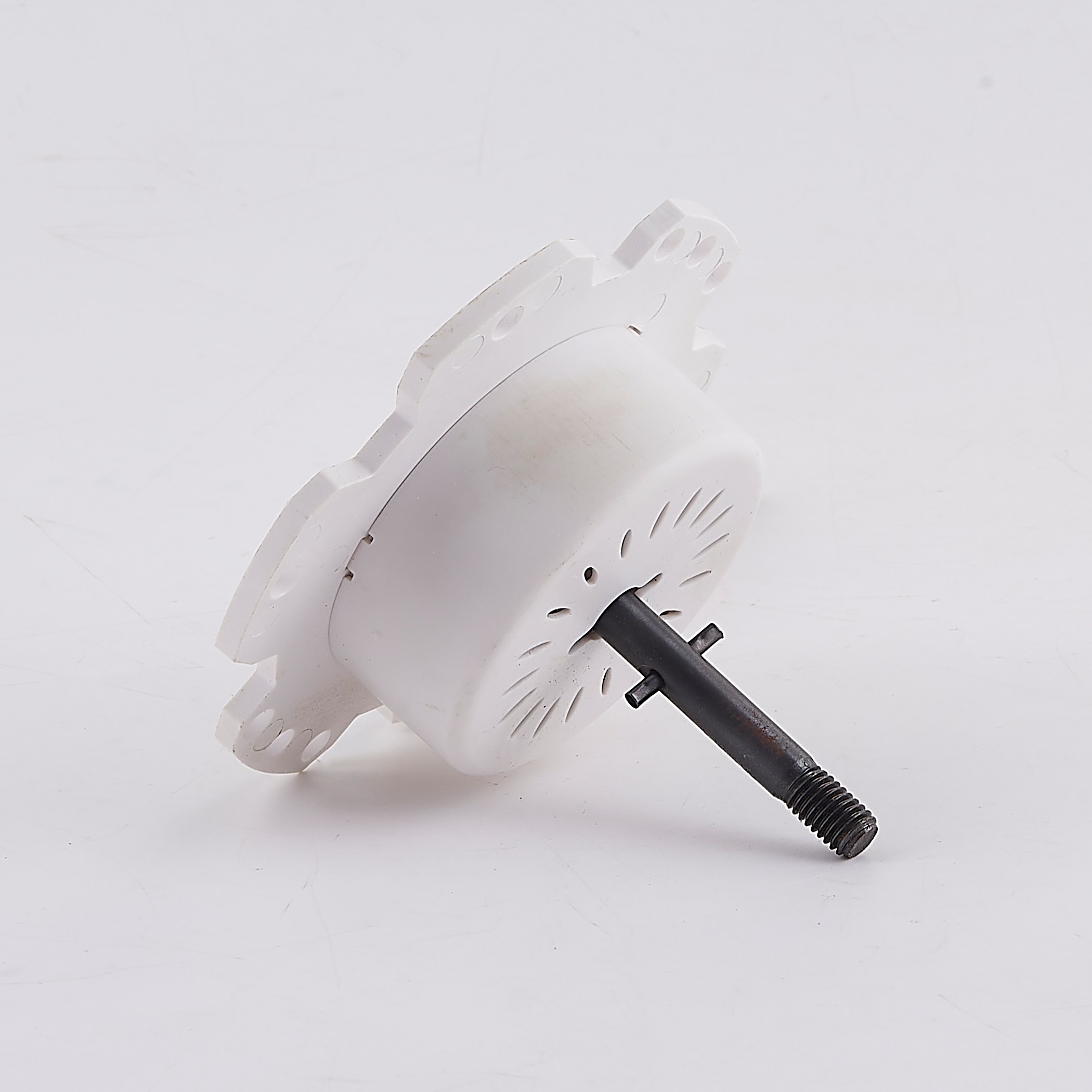

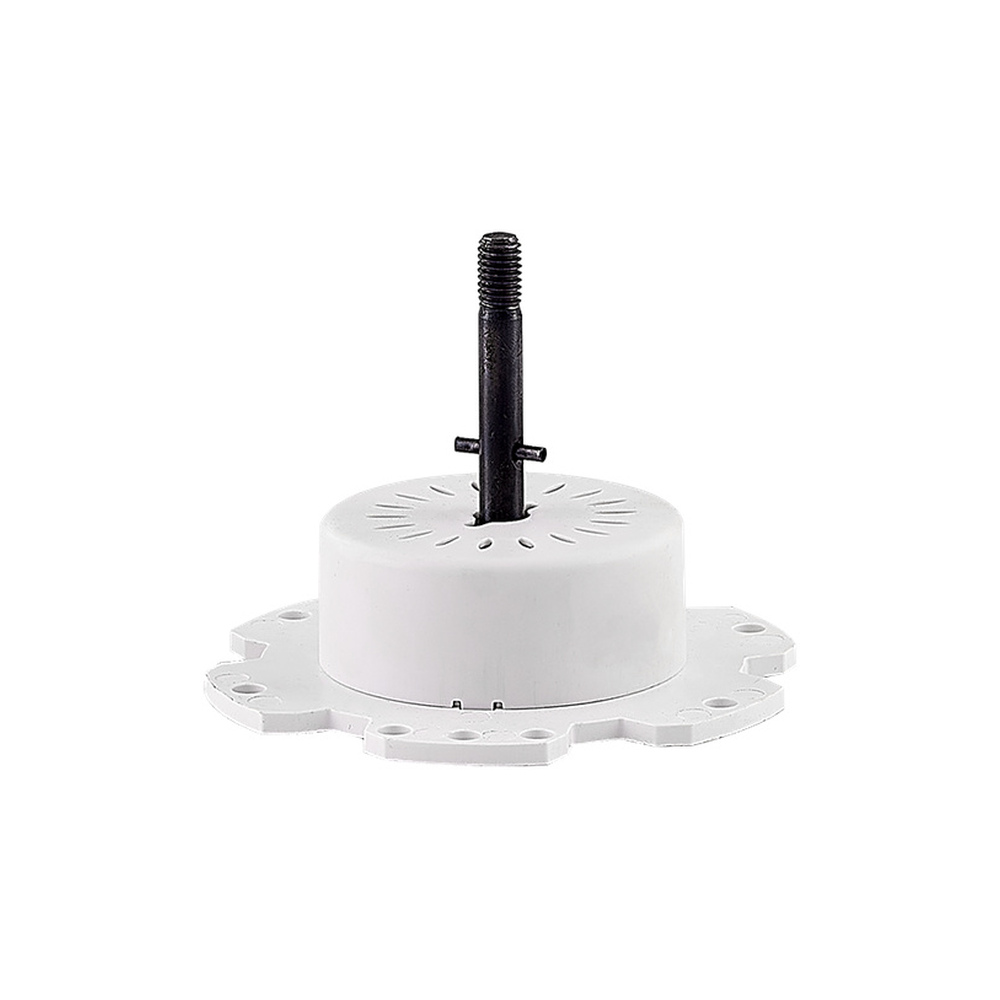

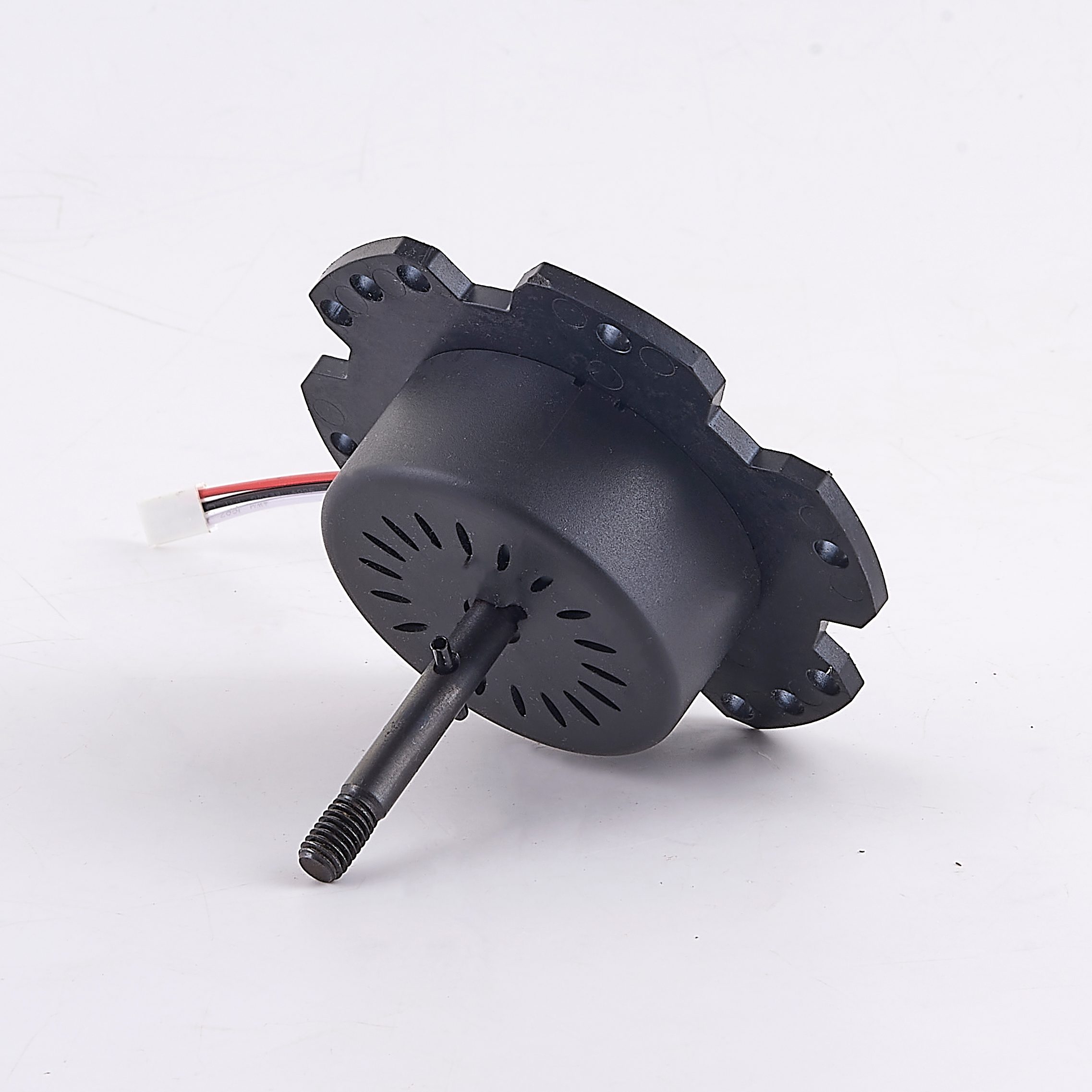

For distributors serving home fan markets, a motor must match both daily-use comfort and bulk purchasing needs. This Ceiling Fan Electric Motor is suitable for bedroom ceiling fans, household fan products, and related indoor fan assemblies. Its structure can support fan mounting and motor replacement requirements, helping buyers prepare stock for retail channels, repair demand, and repeated customer orders. It is a practical choice for distributors who need fan motors that fit common home-use applications and can be purchased in quantity.
58A Performance Curve
58A External Dimensions
| Model No. | BE5810A001 | |
| Voltage | 24V | |
| Wire | CCA | |
| Shell Material | Galvanized Steel Sheet | |
| Stator | Diameter | 48.5mm |
| Thickness | 8mm | |
| Slot Number | 12 | |
| Material | Silicon Steel | |
| Rated-Load | Speed (r/min) | 1100 |
| Input Power (W) | 18 | |
| Noise (dB(A)) | ＜40 | |
| Operation Life (Hours) | ＞8000 | |
| Application | Bedroom ceiling fan, Bathroom heater, Pedestal fan, Cirulation fan, Exhaust fan | |
1、24V Low-Voltage Ceiling Fan Configuration
BE5810A001 uses a 24V electrical system with 18W input power. This configuration is suitable for compact ceiling fans using an external driver or low-voltage control system. It supports steady daily operation without requiring a large motor structure inside the ceiling canopy.
Our factory can review the motor together with the customer’s power supply, driver and speed-control requirements before sample confirmation.
2、1100 r/min Rated Speed for Moderate Airflow
The motor reaches 1100 r/min under rated load. This speed can support compact bedroom ceiling fan blades that require consistent air movement without being developed for oversized commercial fan structures.
The actual airflow depends on the blade diameter, pitch and total rotating weight. Sample testing with the production blade helps confirm whether the motor speed matches the intended room coverage.
3、48.5mm Compact Stator for Ceiling Fan Housings
The Ceiling Fan Electric Motor uses a 48.5mm diameter stator with an 8mm thickness and 12 slots. Its compact dimensions help manufacturers arrange the motor, driver and wiring inside a smaller fan housing.
During production, stator dimensions and motor assembly follow the approved sample. This helps maintain installation compatibility when the same ceiling fan model is produced in repeat batches.
4、CCA Winding with Galvanized Steel Shell
CCA wire is used for the motor winding, while the galvanized steel sheet shell protects the internal stator and rotor. The shell supports a stable mounting structure and helps protect the motor during ceiling fan assembly.
Wire length, connector type, lead direction and mounting details can be confirmed according to the buyer’s housing and control-board layout.
5、Quiet Operation for Indoor Ceiling Fans
The listed motor noise is below 40dB(A), making it suitable for ceiling fans installed in bedrooms, guest rooms and study areas. Its operating life exceeds 8000 hours when matched with the correct blade and driver.
Factory testing can include startup, rated-load speed, running noise and vibration. Final noise approval should be completed after the motor is installed in the full fan assembly.
1、Bedroom Ceiling Fans
This motor is suitable for bedroom ceiling fans that require moderate airflow and quieter operation. The blade size and controller settings should be selected according to the room area and required speed levels.
2、Guest Room Ceiling Fans
Compact fan designs for guest rooms can use the 24V and 18W configuration where installation space is limited. The motor should be tested with the final canopy, blade and mounting structure.
3、Study Room Ceiling Fans
A Ceiling Fan Electric Motor with below-40dB(A) operating noise can support ceiling fan products used in study and reading spaces. Low-speed performance should be reviewed during complete fan testing.
4、Compact Residential Fan Projects
The 48.5mm stator diameter can be considered for smaller residential ceiling fans where the motor housing must remain compact. Buyers should confirm shaft position, mounting holes and internal clearance before production.
5、Ceiling Fan Replacement Supply
BE5810A001 can be evaluated for compatible ceiling fan replacement programs. The original voltage, power, speed, mounting dimensions, shaft, connector and driver must be compared before a replacement order is approved.
1、Keep the Ceiling Canopy Clean
Dust around the motor and driver may reduce heat dissipation. The canopy interior should remain clean and dry, and water should not enter the electrical components.
2、Inspect Blade Alignment
Loose or uneven blades may cause shaking and additional motor load. Blade balance and mounting screws should be checked before the motor is identified as faulty.
3、Check the Suspension Structure
Loose brackets, rods or connecting parts can increase vibration and operating noise. Mounting components should remain secure during use.
4、Inspect Wiring Before Motor Replacement
Loose terminals, damaged connectors or an unsuitable driver may cause unstable startup. Electrical components should be checked before replacing the Ceiling Fan Electric Motor.
5、Record After-Sales Configuration
Service teams should record model BE5810A001, the matched driver, connector details and blade structure. Clear records help reduce replacement errors and simplify repeat purchasing.
For a Ceiling Fan Electric Motor inquiry, please provide the required quantity, blade diameter, blade weight, shaft dimensions, mounting structure, housing space, driver information, connector type and destination market.
For replacement projects, please send the original motor label, dimensional drawing or complete fan sample. Our team can review mechanical fit, driver compatibility, operating speed and finished-fan performance before bulk production.
