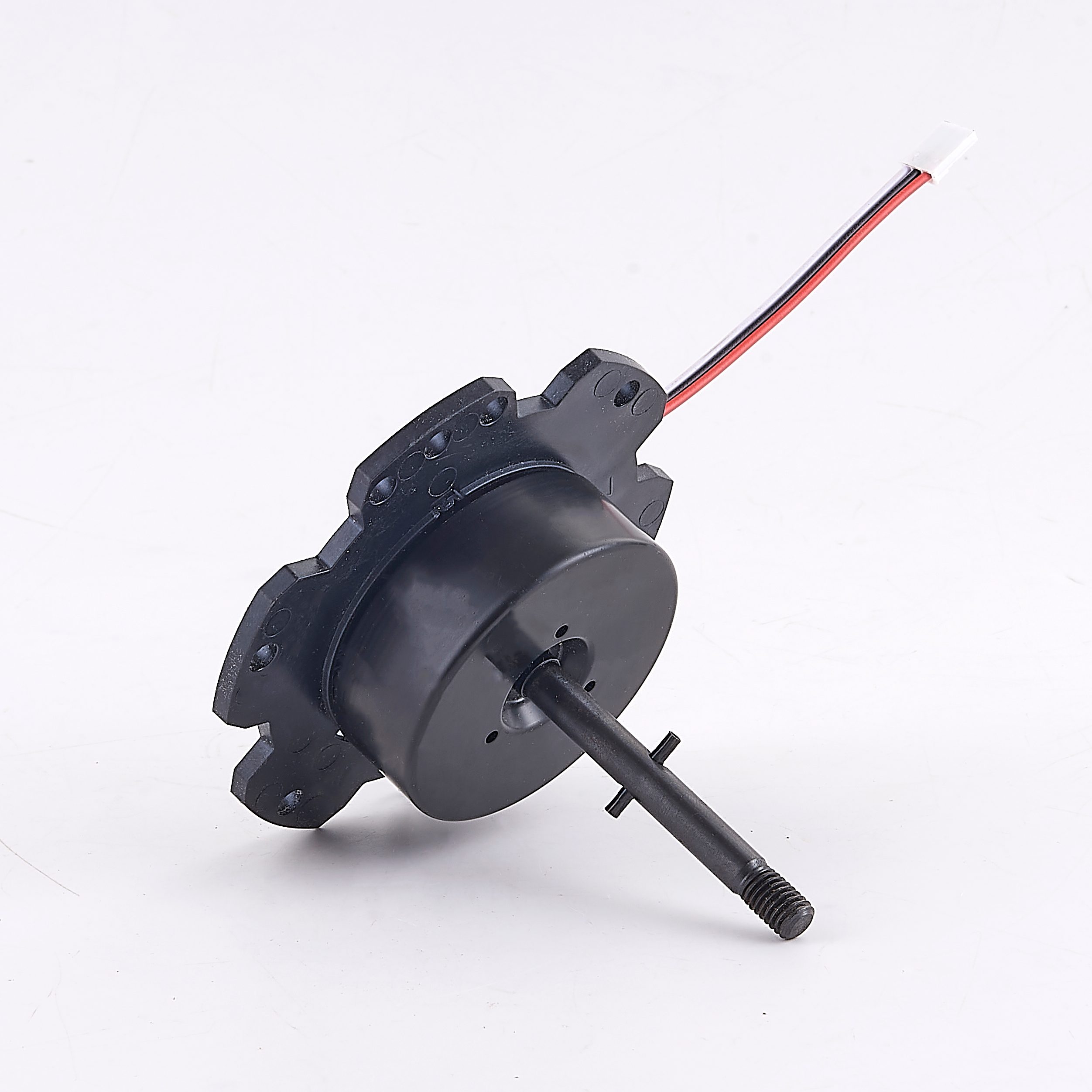

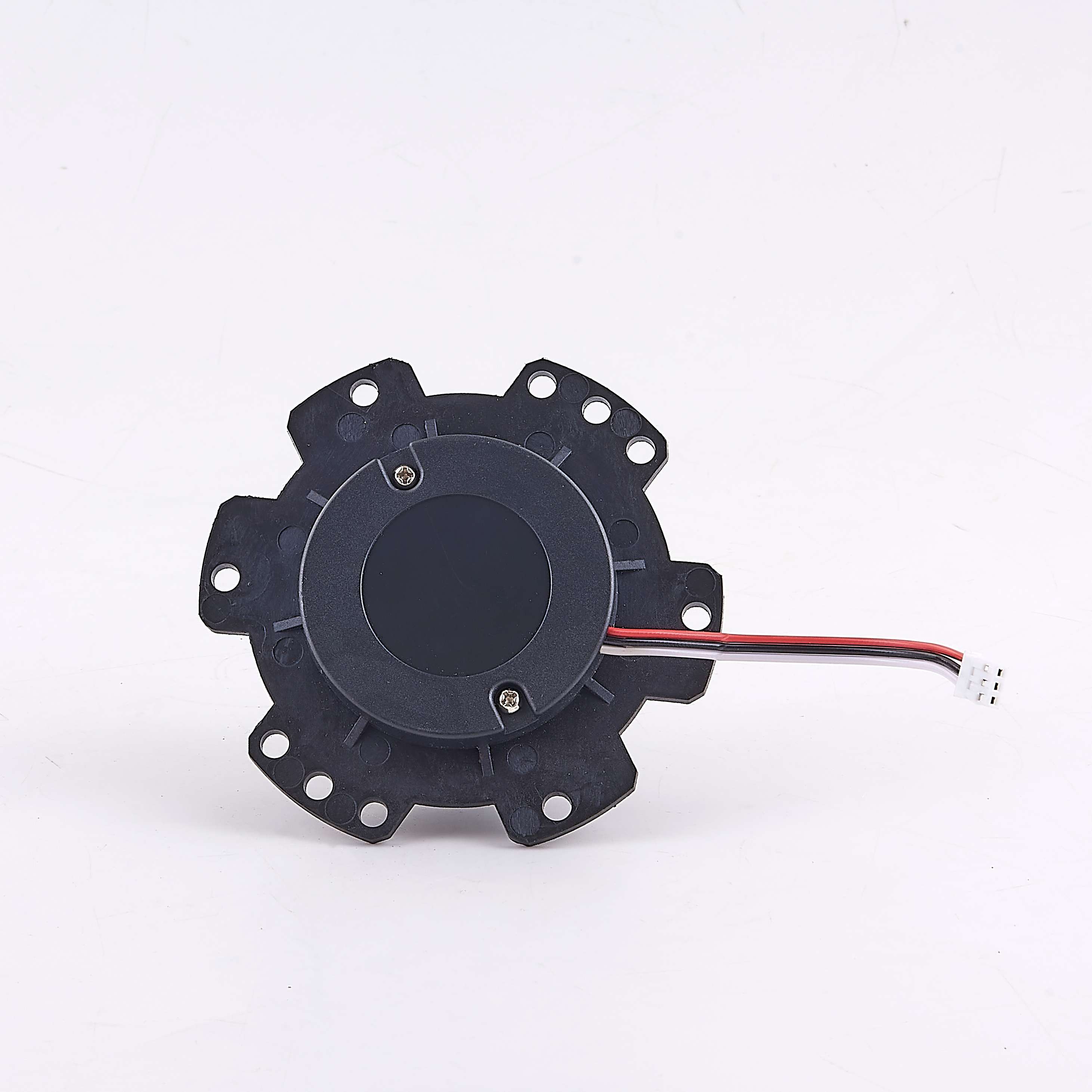

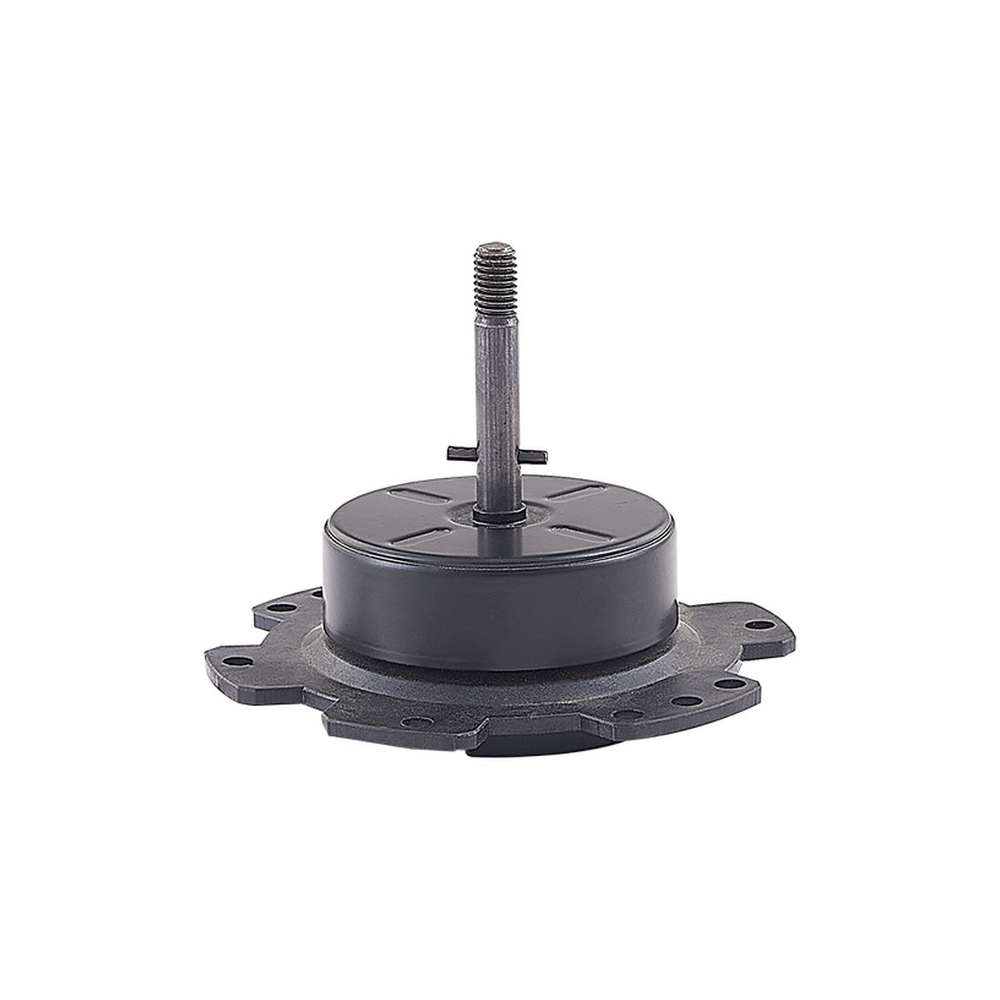

Cable compatibility and installation space are important when selecting motors for home fan assembly. The BLDC Cooler Fan Motor uses a wired connection that allows it to be linked with a suitable fan control system without sourcing a separate motor lead. It is intended for bedroom fans, household ceiling fans, and indoor air circulation products where a compact motor arrangement is required. For B2B buyers, the model provides a practical option for new fan assembly, component stocking, and regular bulk purchasing.

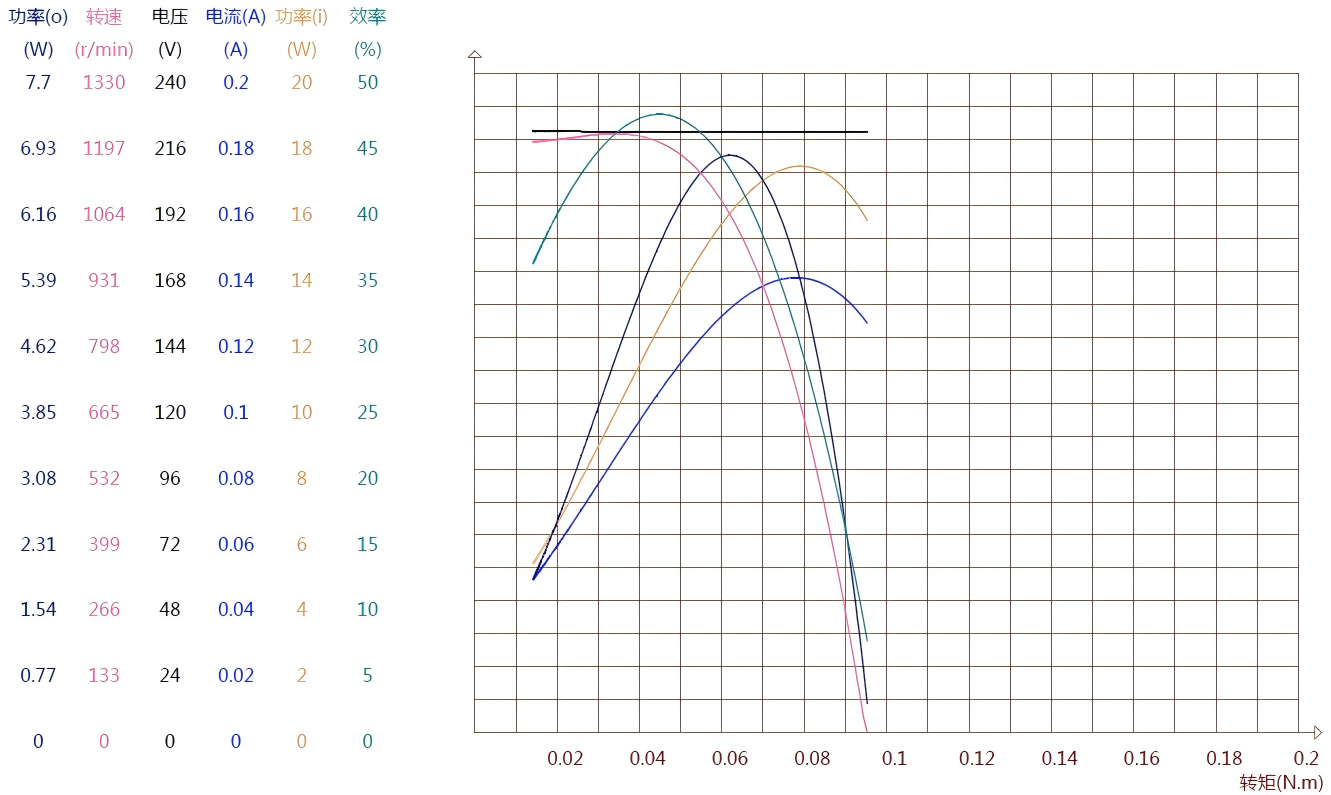

63A Performance curves

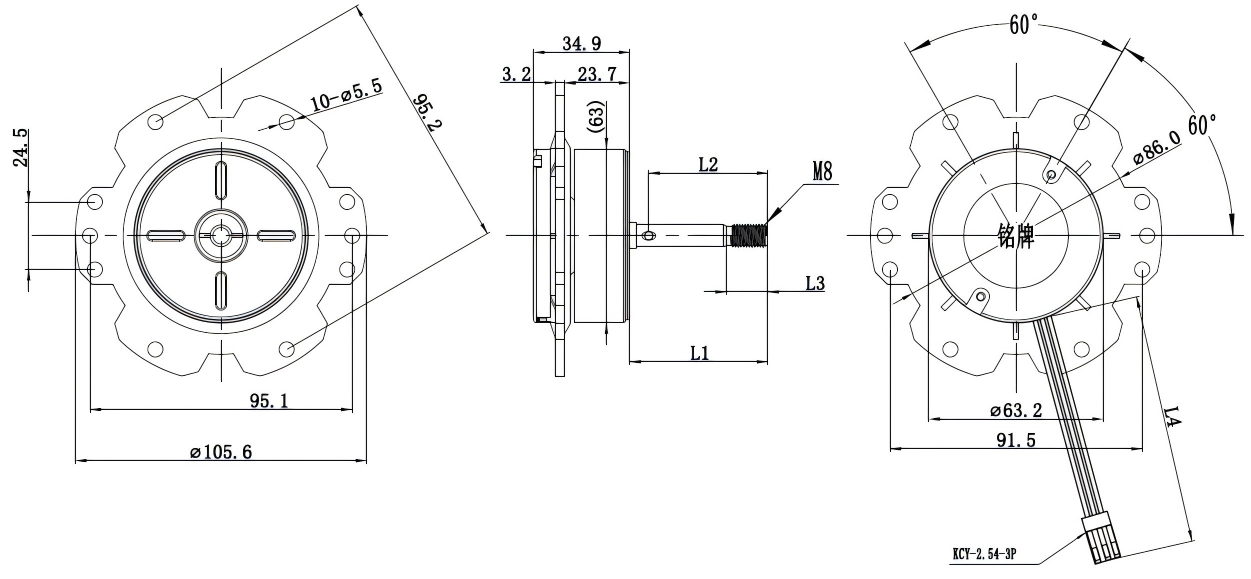

63A External dimensions
| Model No. | BE4010A024 | BE4010A008 | |
| Voltage | 24V | 24V | |
| Wire | CCA | CCA | |
| Shell Material | galvanized steel sheet | galvanized steel sheet | |
| Stator | Diameter | 54.4mm | 54.4mm |
| Thickness | 7mm | 10mm | |
| Slot Number | 12 | 12 | |
| Material | silicon steel | silicon steel | |
| Rated-Load | Speed (r/min) | 1200 | 1300 |
| Power (W) | 18 | 18 | |
| Noise (dB(A)) | ＜40 | ＜40 | |
| Operation Life (Hours) | ＞8000 | ＞8000 | |
| Application | Bedroom ceiling fan, Bathroom heater, Pedestal fan, Cirulation fan, Exhaust fan | ||
1、Two Speed Options for Different Airflow Requirements
BE4010A024 operates at 1200 r/min with a 7mm stator, while BE4010A008 reaches 1300 r/min with a 10mm stator. Both models use 24V voltage and 18W power, providing two configurations for fan projects with different blade loads and airflow targets.
During sample development, our factory can test the selected BLDC Cooler Fan Motor with the buyer’s blade and control system. This helps confirm startup, operating current and speed response before batch production.
2、Compact 54.4mm Stator Structure
Both motors use a 54.4mm diameter silicon steel stator with 12 slots. The compact stator size is suitable for fan housings where motor installation space is limited.
Production follows the approved stator thickness, slot structure and winding specification. Keeping these details consistent helps reduce speed and performance differences between repeat orders.
3、CCA Winding with Galvanized Steel Protection
CCA wire is used for both motor configurations, while the galvanized steel sheet shell protects the internal stator and rotor. This structure supports compact assembly in household air circulation and ventilation products.
Our production checks focus on winding arrangement, shell fitting and motor assembly condition. Wire length, connector type and installation direction can be confirmed according to the buyer’s finished fan design.
4、Low-Noise Performance and Extended Working Life
The operating noise of both models is below 40dB(A), making them suitable for indoor fan products used near bedrooms, offices and shared living areas. Their listed operation life exceeds 8000 hours when matched with the correct driver and operating load.
Factory inspection can cover rated-load speed, startup, vibration, running noise and general operating condition. The complete appliance should also be tested because blade balance and housing design affect final sound performance.
1、Air Circulation Fans
The BLDC Cooler Fan Motor can be used in circulation fans that move air through bedrooms, offices and other indoor areas. Buyers should match the motor speed with the blade diameter and air duct design to achieve the required airflow.
2、Pedestal Fans
The two 18W motor options can be evaluated for compact pedestal fan projects. Motor selection should consider blade weight, speed settings, oscillation structure and the available space inside the rear housing.
3、Bathroom Heater Fans
The listed application range includes bathroom heaters that use a fan to circulate warm air. The motor installation position, surrounding temperature and ventilation conditions should be reviewed before sample approval.
4、Exhaust Fan Systems
These motors can also be assessed for selected exhaust fans requiring 24V operation and compact installation. Air resistance, blade load and continuous operating time should be tested in the finished ventilation unit.
5、Bedroom Ceiling Fans
The below-40dB(A) noise specification supports evaluation for selected bedroom ceiling fans. The motor, blade and controller should be tested together to confirm airflow, vibration and operating stability.
1、Select the Motor by Blade Load
Blade diameter, blade quantity, pitch angle and total weight affect the required motor output. Buyers should provide the actual blade or complete blade data when comparing the 1200 r/min and 1300 r/min models.
2、Confirm the 24V Control System
The motor must be matched with a suitable 24V driver. Speed levels, rotation direction, connector definition and control functions should be confirmed before the first sample is assembled.
3、Check the Installation Space
Although both models use a 54.4mm stator diameter, their stator thicknesses are different. Buyers should check housing depth, shaft position, mounting points and wire direction before selecting the final model.
4、Test the Finished Appliance
Sample testing should use the actual blade, housing and controller. Startup, airflow, current, speed, noise, vibration and temperature rise should be evaluated together before production approval.
1、Keep Ventilation Openings Clear
Dust around the motor and fan housing may reduce heat dissipation and airflow. Ventilation openings should be cleaned regularly without allowing water to enter the motor or control board.
2、Inspect the Fan Blade
A loose, damaged or unbalanced blade can increase vibration and motor load. The blade hub and shaft connection should be checked when abnormal shaking or noise appears.
3、Check Wiring and Connectors
Loose terminals or damaged wires may cause difficult startup or unstable speed. The appliance should be disconnected from the power supply before electrical connections are inspected.
4、Monitor Operating Noise
An increase in noise may come from the blade, mounting structure or motor assembly. Service teams should check the complete fan system before replacing the BLDC Cooler Fan Motor.
5、Record the Installed Model
BE4010A024 and BE4010A008 have different stator thicknesses and rated speeds. After-sales teams should record the installed model to avoid using the wrong configuration during future replacement or repair.
For a BLDC Cooler Fan Motor inquiry, please provide the preferred model, fan blade dimensions, required airflow, shaft and mounting details, driver information, connector type, estimated order quantity and destination market.
Our team can help compare BE4010A024 and BE4010A008, review motor and controller compatibility, and arrange complete fan testing before bulk production.
