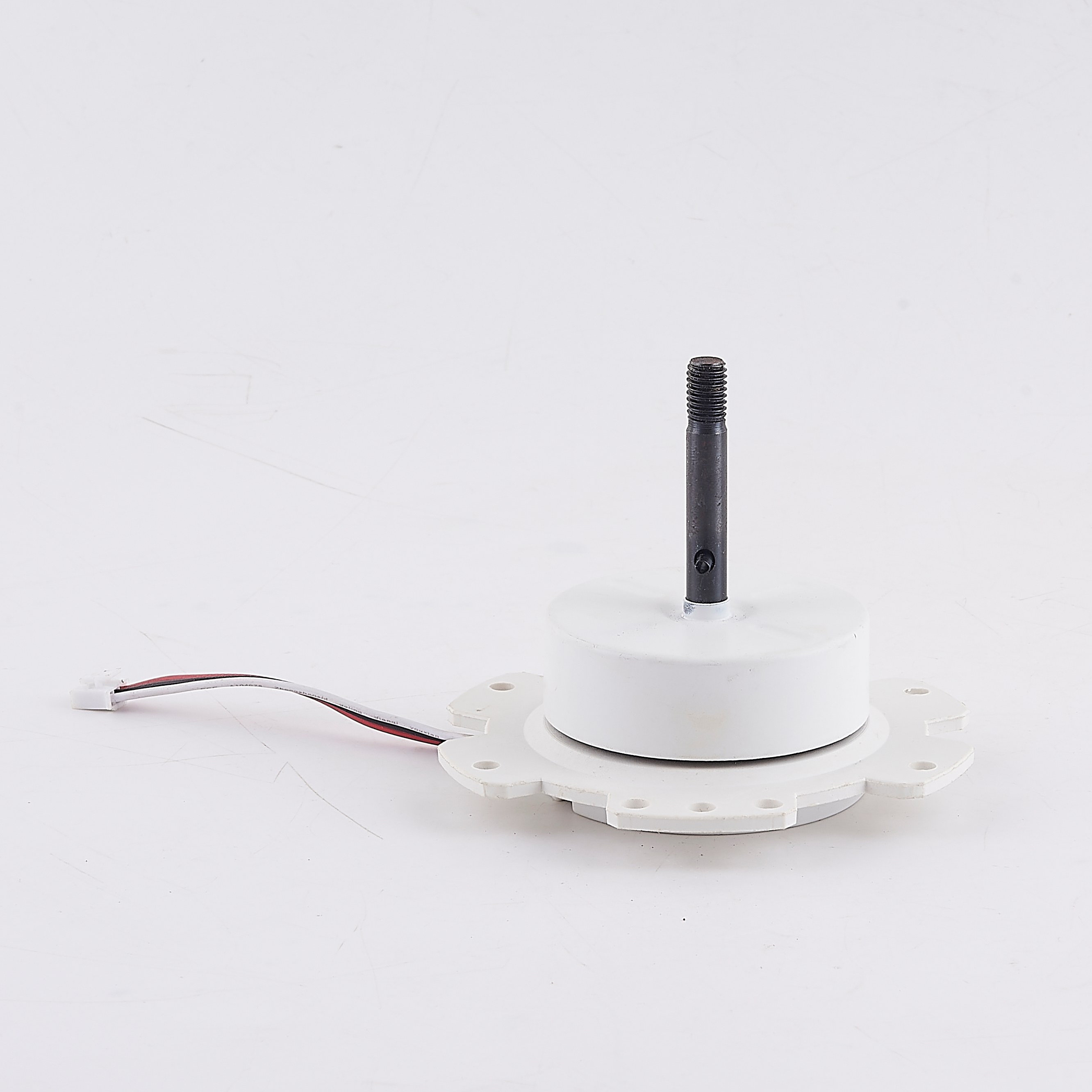

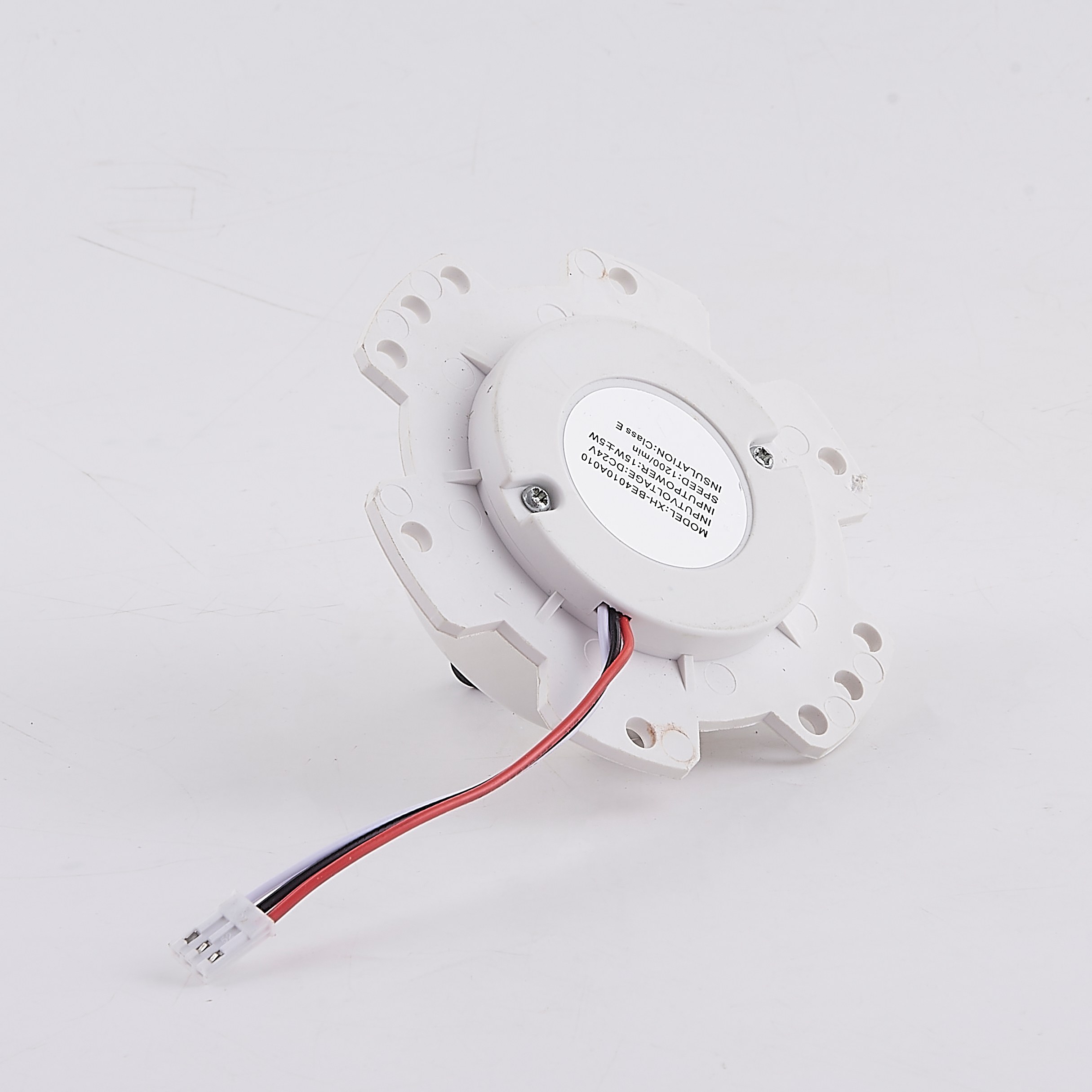

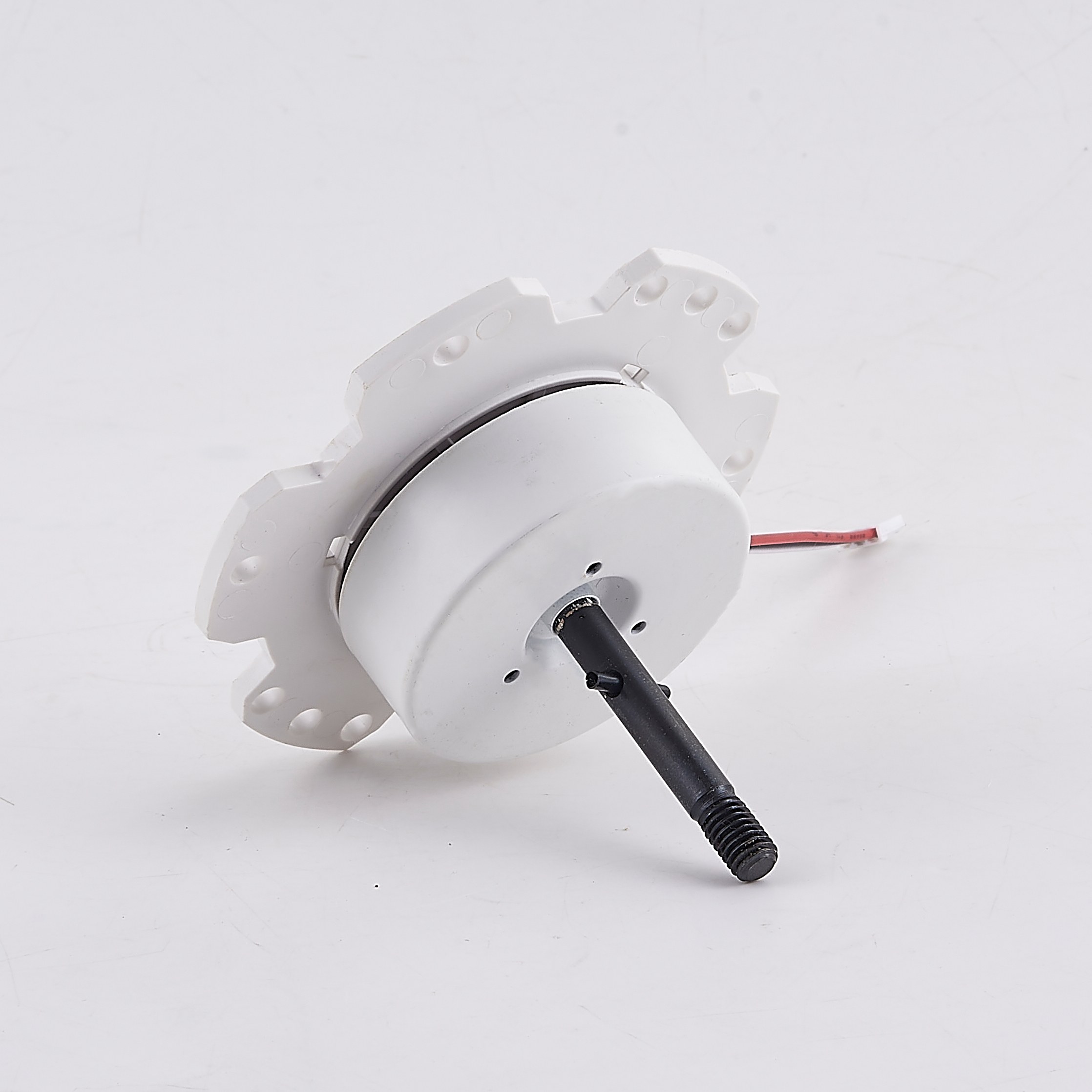

Component consistency and delivery reliability are key concerns when purchasing motors for repeated fan production. The BLDC Ceiling Fan Motor includes an Integrated PCB, reducing the need to source and match a separate control board during assembly. It can be used in household ceiling fans, decorative fan lights, and other indoor fan applications. With dependable factory output and organized order fulfillment, this motor is a preferred option for B2B buyers seeking simpler sourcing, consistent configuration, and uninterrupted supply.

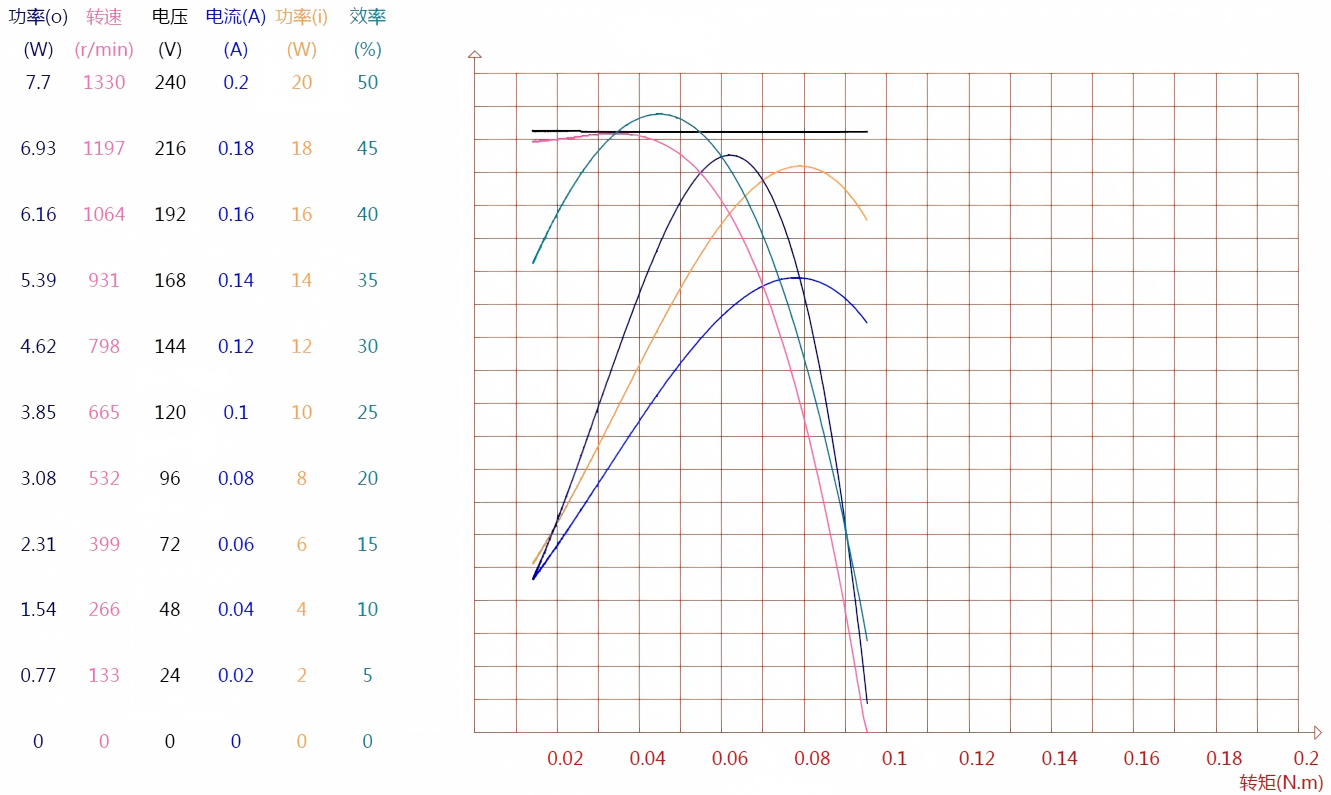

63B Performance curves

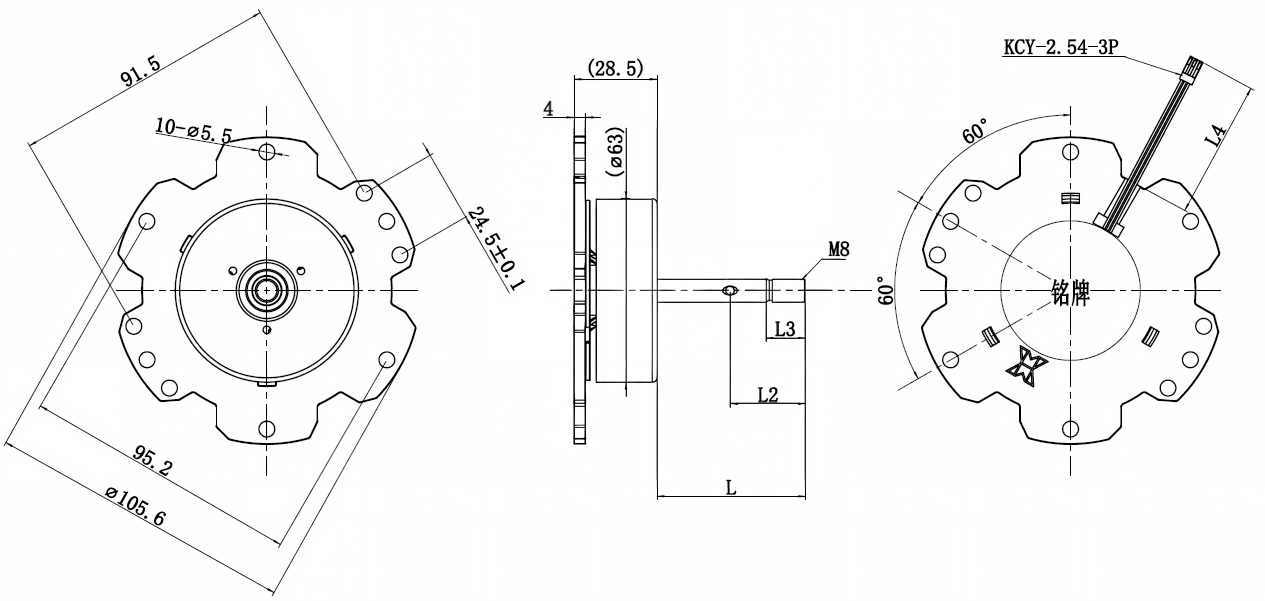

63B External dimensions
| Model No. | BE4010B001 | BE4010A008 | |
| Voltage | 24V | 24V | |
| Wire | 100% Copper | CCA | |
| Shell Material | galvanized steel sheet | galvanized steel sheet | |
| Stator | Diameter | 54.4mm | 54.4mm |
| Thickness | 7mm | 10mm | |
| Slot Number | 12 | 12 | |
| Material | silicon steel | silicon steel | |
| Rated-Load | Speed (r/min) | 1200 | 1300 |
| Power (W) | 18 | 18 | |
| Noise (dB(A)) | ＜40 | ＜40 | |
| Operation Life (Hours) | ＞8000 | ＞8000 | |
| Application | Bedroom ceiling fan, Bathroom heater, Pedestal fan, Cirulation fan, Exhaust fan | ||
1、Two 24V 18W Motor Configurations
BE4010B001 operates at 1200 r/min, while BE4010A008 reaches 1300 r/min under rated load. Both models use 24V voltage and 18W power, allowing fan manufacturers to select the required speed without changing the basic motor diameter.
Our factory can test each model with the buyer’s blade and control system. This helps confirm startup, running current, airflow and speed response before the motor enters bulk production.
2、54.4mm Silicon Steel Stator
Both BLDC Ceiling Fan Motor models use a 54.4mm diameter silicon steel stator with 12 slots. BE4010B001 has a 7mm stator thickness, while BE4010A008 uses a 10mm stator for a different speed and load configuration.
The stator dimensions, slot structure and winding specification are controlled according to the approved model. This helps keep the selected motor configuration consistent across repeat orders.
3、Copper and CCA Winding Options
BE4010B001 uses 100% copper wire, while BE4010A008 uses CCA wire. The two winding configurations give buyers different choices according to their product design and purchasing requirements.
Both models use a galvanized steel sheet shell to protect the internal stator and rotor structure. Production checks cover winding identification, shell assembly and visible motor condition to reduce model mixing and assembly differences.
4、Below 40dB(A) Operating Noise
The listed operating noise of both models is below 40dB(A), supporting bedroom ceiling fan projects where quiet indoor operation is important. Their operation life exceeds 8000 hours under the approved voltage, driver and blade load.
Before delivery, motor testing can cover rated-load speed, startup, vibration, running noise and general operating condition. Final sound performance should also be checked after the blade and ceiling fan housing are assembled.
1、Bedroom Ceiling Fans
The motor series is suitable for bedroom ceiling fans that require compact installation and controlled operating noise. Buyers should select the model according to the blade design, desired airflow and available housing space.
2、Compact Residential Ceiling Fans
The 54.4mm stator diameter supports evaluation for smaller residential ceiling fan structures. Motor speed and blade load should be tested together to confirm stable operation in the finished product.
3、OEM Ceiling Fan Development
Fan manufacturers can use the two models for new product development or updates to existing 24V fan platforms. Drawings, blade samples or complete fan assemblies can be provided for compatibility checking.
4、Pedestal and Circulation Fans
The listed application range also includes pedestal fans and circulation fans. The motor should be matched with the actual blade, air duct and controller because these products may use different load conditions from ceiling fans.
5、Bathroom Heaters and Exhaust Fans
The motors can also be evaluated for selected bathroom heater and exhaust fan systems. Installation space, airflow resistance and continuous operating requirements should be confirmed before sampling.
1、BE4010B001
BE4010B001 uses 100% copper winding, a 7mm stator and a rated-load speed of 1200 r/min. It is suitable for buyers who require a copper-wound motor within this 24V and 18W series.
2、BE4010A008
BE4010A008 uses CCA wire, a 10mm stator and a rated-load speed of 1300 r/min. It provides a second configuration for projects requiring a thicker stator and higher listed speed.
3、Compare the Complete Fan Load
The model should not be selected only by comparing 1200 and 1300 r/min. Blade diameter, blade weight, pitch angle, controller output and housing structure can all affect the finished fan performance.
1、Confirm Mounting Dimensions
The motor body, shaft, mounting points and wire direction must fit the ceiling fan structure. Buyers should provide drawings or an original sample when developing a compatible replacement.
2、Check Blade Balance
An uneven or incorrectly fitted blade may increase vibration and motor load. Complete fan testing should use the actual production blade rather than testing the unloaded motor alone.
3、Match the Electrical System
The power supply and controller must match the 24V motor configuration. Incorrect driver output or wiring may cause unstable startup, speed fluctuation or excessive temperature rise.
4、Record the Approved Configuration
The selected model, winding material, stator thickness, wiring and driver settings should be recorded after sample approval. This provides a clear reference for repeat production and future maintenance.
1、Keep the Motor Area Clean
Dust around the motor and ventilation openings may affect heat dissipation. The internal fan area should remain clean and dry, and water should not enter the motor or driver.
2、Inspect Blade and Mounting Stability
Loose blades, brackets or mounting screws may cause vibration and abnormal noise. These parts should be checked before the motor is identified as the source of a fault.
3、Check Wiring and Connectors
Loose terminals or damaged wires may cause intermittent startup or unstable speed. The power supply should be disconnected before the wiring is inspected.
4、Monitor Noise and Temperature
An increase in operating noise or temperature may indicate blade imbalance, blocked ventilation, incorrect loading or driver mismatch. The fan should be stopped for inspection before continued operation.
5、Keep Model Records for Replacement
Service teams should record whether the installed motor is BE4010B001 or BE4010A008. Their winding materials, stator thicknesses and rated speeds are different, so they should not be treated as identical replacement parts.
For a BLDC Ceiling Fan Motor inquiry, please provide the preferred model, blade diameter, blade weight, shaft and mounting dimensions, driver information, connector type, required quantity and destination market.
Our team can help compare BE4010B001 and BE4010A008, review motor and driver compatibility, arrange sample testing and confirm the configuration for your ceiling fan project.
