Limited installation space is a common concern when developing exhaust fans for modern home kitchens. Kitchen Exhaust Fan Motor uses a compact form that fits neatly into suitable fan housings while supporting a clean and contemporary product design. It can be applied to wall-mounted kitchen exhaust fans, compact ventilation units, and household air extraction products. The motor is a practical sourcing option for distributors expanding their exhaust fan motor range and buyers preparing components for residential kitchen fan production and replacement sales.

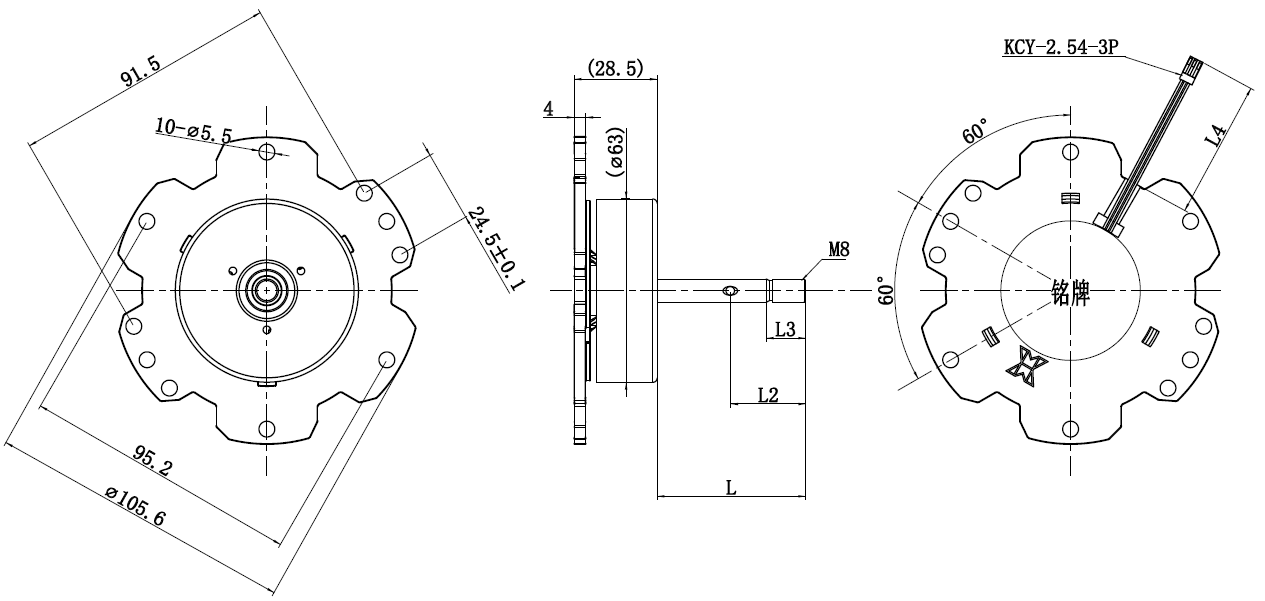

63B External dimensions

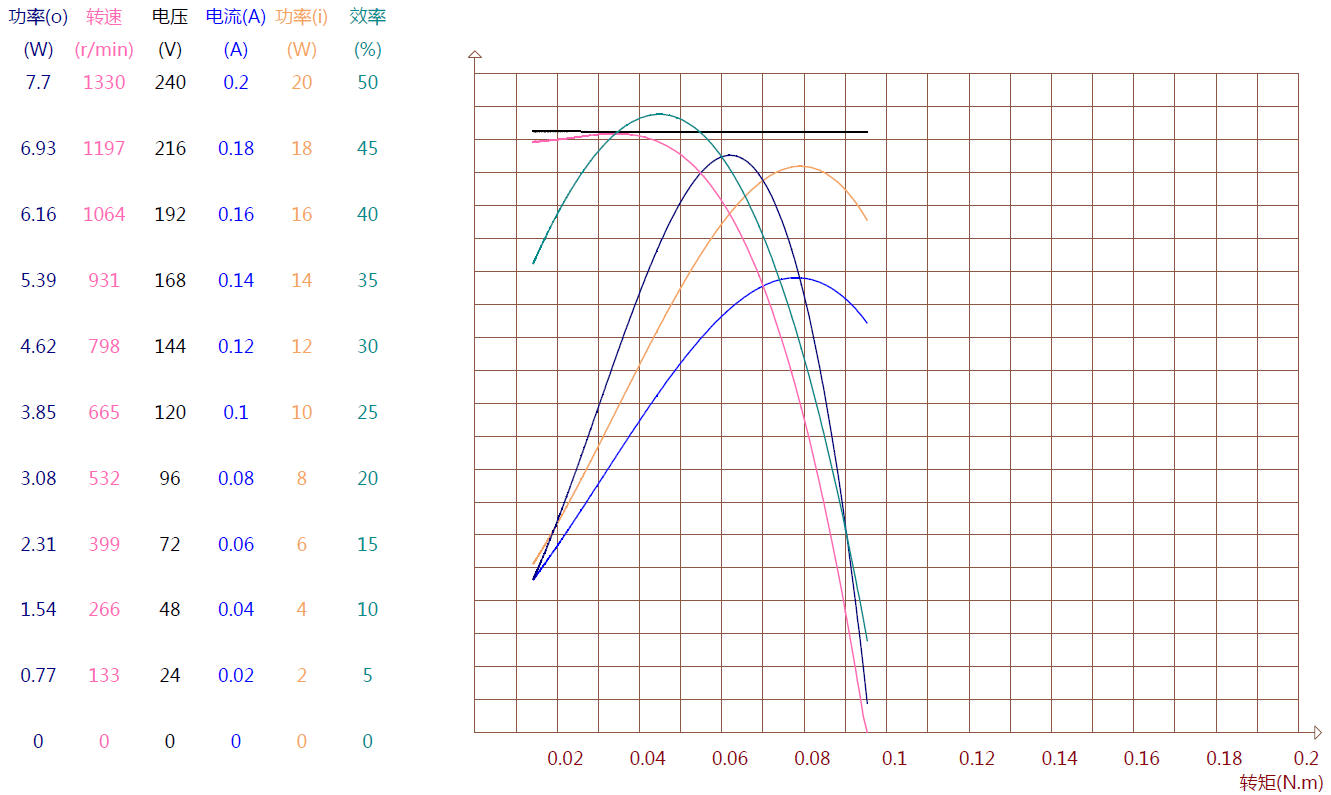

63B Performance curves
| Model No. | BE4010B001 | BE4010A008 | |
| Voltage | 24V | 24V | |
| Wire | 100% Copper | CCA | |
| Shell Material | galvanized steel sheet | galvanized steel sheet | |
| Stator | Diameter | 54.4mm | 54.4mm |
| Thickness | 7mm | 10mm | |
| Slot Number | 12 | 12 | |
| Material | silicon steel | silicon steel | |
| Rated-Load | Speed (r/min) | 1200 | 1300 |
| Power (W) | 18 | 18 | |
| Noise (dB(A)) | ＜40 | ＜40 | |
| Operation Life (Hours) | ＞8000 | ＞8000 | |
| Application | Bedroom ceiling fan, Bathroom heater, Pedestal fan, Cirulation fan, Exhaust fan | ||
Our premium Kitchen Exhaust Fan Motor is built with high-quality materials and precision engineering, delivering strong airflow and excellent energy efficiency.
Advanced winding and assembly processes enhance motor efficiency, heat dissipation, and overall durability.
• Customizable copper wire or copper clad aluminum windings
• Adjustable stator thickness
• Magnet options: plastic magnet, ferrite magnet, or NdFeB magnet
Fully customizable to meet various kitchen exhaust fan specifications.
This Exhaust Fan Motor uses a compact stator structure for small fan products where internal space needs to be carefully controlled. It helps manufacturers simplify motor matching during product design, sample testing and assembly confirmation.
The galvanized steel sheet shell helps support the motor body during installation and regular appliance operation. It is suitable for fan manufacturers that need stable housing protection for ventilation and air circulation products.
Both models have a noise level below 40 dB(A), which helps reduce operating disturbance in indoor environments. This makes the motor suitable for household fan appliances where quiet operation is an important product requirement.
With an operation life of more than 8000 hours, this motor series can support regular use in fan and ventilation products. For buyers, this helps improve confidence during sample approval, product testing and bulk order planning.
Exhaust Fan Motor can be used in compact exhaust fans that require steady rotation, low noise and stable output. It is suitable for household ventilation equipment and small air discharge systems. The 24V and 18W specification makes it easier for buyers to match fan designs with controlled power requirements.
The motor can match bathroom heater products that need fan-driven air movement. Its low-noise performance helps improve user comfort in indoor appliance applications. The compact motor structure also supports bathroom appliance designs where installation space is limited.
This motor series can be applied to bedroom ceiling fan products that need stable rotation and controlled noise. The 1200 to 1300 r/min speed range gives buyers two practical options for different airflow requirements. It is suitable for manufacturers developing compact ceiling fan models for household use.
Exhaust Fan Motor can also support circulation fans and pedestal fans that need steady airflow movement. Its 24V voltage, 18W power and low-noise operation make it useful for small appliance product lines. For fan manufacturers, the same motor platform can support different air movement products.
We are committed to excellence in every Kitchen Exhaust Fan Motor we produce through automated production and rigorous testing standards.
Our advanced automated production line ensures consistent quality for every Kitchen Exhaust Fan Motor:
Motor casing and bottom cover
Precision winding stator
Wire cutting and tin dipping process
Every Kitchen Exhaust Fan Motor undergoes comprehensive testing to guarantee top performance:
First Article Inspection (FAI)
100% Stator Detection
100% Noise Testing
With full-process automation and 100% quality inspection, our Kitchen Exhaust Fan Motor offers outstanding reliability, low noise, and long service life — making it the ideal choice for range hoods and kitchen exhaust systems.
Looking for a 24V Exhaust Fan Motor for fan production or appliance assembly? Send us your required voltage, power, speed, wire material and application, and our team can help match the suitable model for sampling, testing and bulk order planning.
We provide OEM and ODM customization services for customers who need flexible product solutions and reliable manufacturing support. From product structure optimization and component selection to production, quality inspection and packaging, we work closely with customers to develop products that meet their market requirements. Our supply chain management system includes strict supplier evaluation, material testing and production verification to ensure stable quality and consistent delivery. With experienced production teams, professional quality control processes and complete manufacturing capabilities, we can support customized designs, logo packaging and different project requirements. Whether for new product development or long-term supply cooperation, we focus on providing efficient communication, stable production and dependable service throughout the entire manufacturing process.
