Custom High-Speed BLDC Motors And Control Power Supply for Mixed-Flow Inline Fans

Fan Application Type:

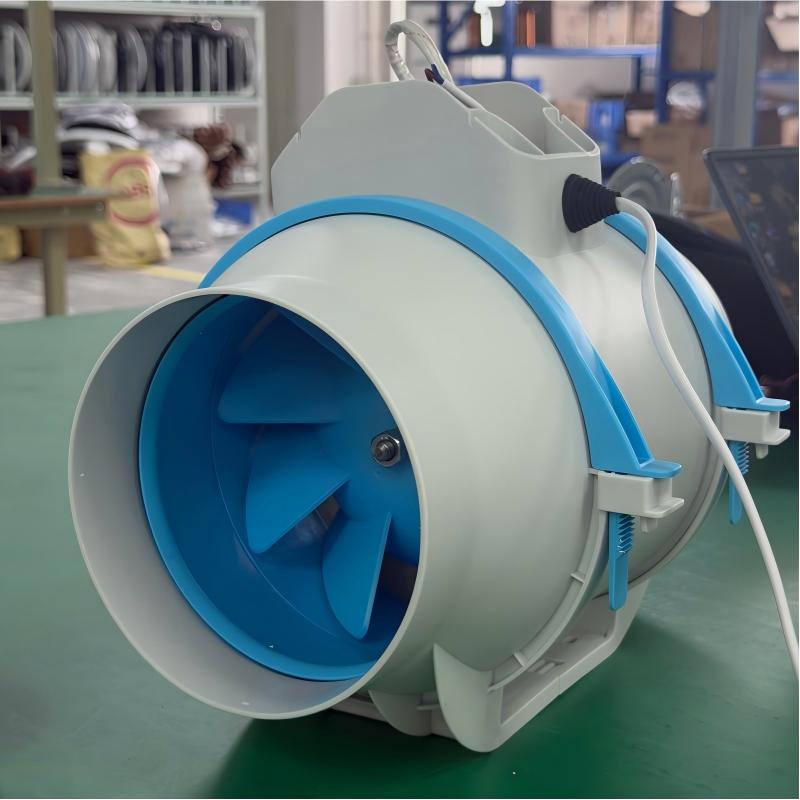

Mixed-flow inline fans used in building ventilation, ducted air circulation, commercial exhaust systems, and equipment cooling applications.

Customization Scope:

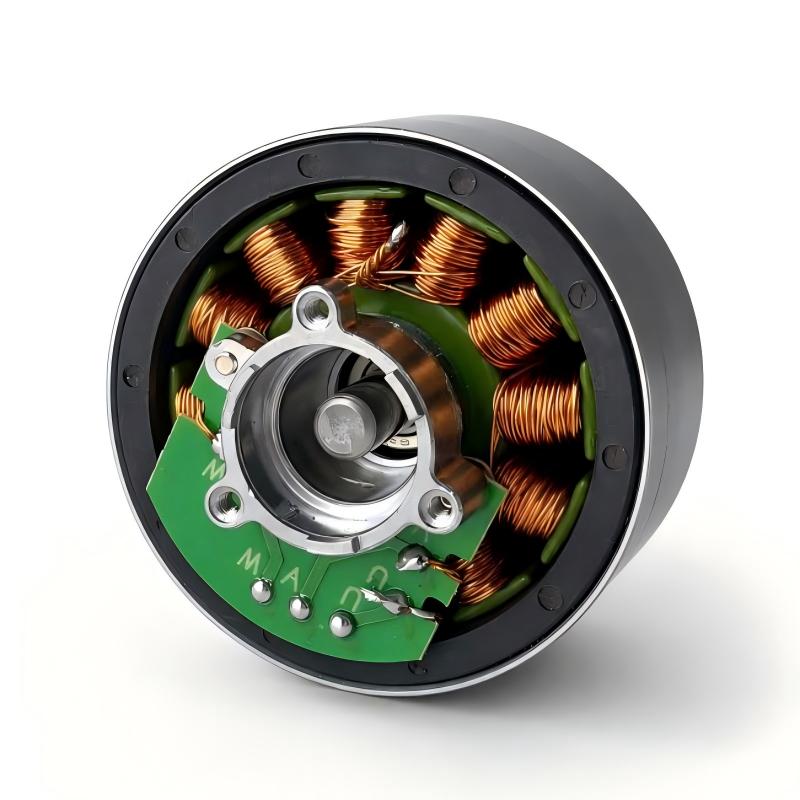

A high-speed brushless DC motor with pure copper windings was customized according to the impeller load and internal installation space. The control power supply size, housing shape, operating program, start-stop logic, and speed parameters were also matched to the fan structure. The motor reaches up to 2500 RPM.

Supply Form:

Complete supply of customized BLDC Motors and matched control power supplies, including installation dimensions, wiring interfaces, and control program coordination.

Brief Customization Description:

Compared with a standard fan motor, this customized solution provides higher rotational speed, lower energy consumption, and more stable operation. The control power supply was designed to fit the reserved fan compartment, reducing installation and compatibility problems. The programmed start-stop and speed-control functions help the mixed-flow inline fan maintain reliable airflow under actual working conditions.
